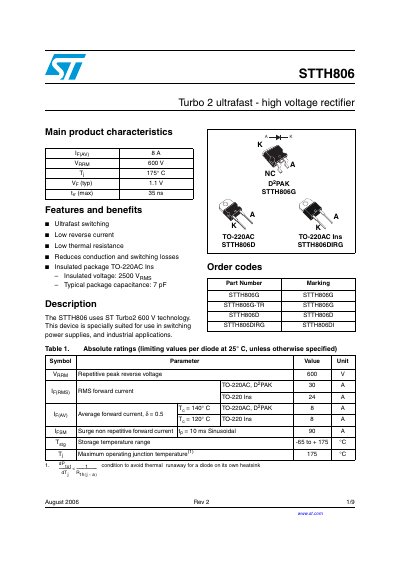

STMicroelectronics STTH806 Turbo 2 Ultrafast High Voltage Rectifier Datasheet
This document describes the STTH806, a Turbo 2 ultrafast high voltage rectifier designed specifically for switching power supplies and industrial applications. The device utilizes ST Turbo2 600 V technology to reduce conduction and switching losses while maintaining low reverse current and thermal resistance.
The datasheet provides comprehensive technical data including absolute ratings such as a repetitive peak reverse voltage of 600V, RMS forward currents up to 30A depending on the package, and storage temperatures from -65°C to +175°C. It also details static electrical characteristics like forward voltage drop and dynamic parameters such as reverse recovery time.
STMicroelectronics STTH806 specifications
| Repetitive peak reverse voltage | 600 V |
|---|---|
| RMS forward current | 14 A |
| Surge non repetitive forward current | 80 A |
| Storage temperature range | -65 +150 °C |
| Maximum operating junction temperature | +150 °C |
| Junction to case thermal resistance (Total) | 26 °C/W |
| Reverse recovery time (Typical) | 13 ns |
| Package Type | TO-220AB |
Source: STMicroelectronics STTH806TTI TurboSwitch Tandem 600V Ultra-Fast Boost Diode Datasheet
All STMicroelectronics STTH806 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the recommended torque value for the TO-220AC package?
The recommended torque value is 0.80 Nm.
From: STMicroelectronics STTH806 Turbo 2 Ultrafast High Voltage Rectifier Datasheet
What is the maximum torque value for the TO-220AC package?
The maximum torque value is 1.0 Nm.
From: STMicroelectronics STTH806 Turbo 2 Ultrafast High Voltage Rectifier Datasheet
What is the maximum operating junction temperature?
The maximum operating junction temperature (Tj) is 150 °C.
Is this diode suitable for high di/dt applications?
Yes, it is designed for high di/dt operation and features hyperfast recovery current.
What is the primary application for the STTH806TTI?
It is especially suited as a boost diode in continuous mode power factor correctors and hard switching conditions.
From: STMicroelectronics STTH806TTI TurboSwitch Tandem 600V Ultra-Fast Boost Diode Datasheet
What is the maximum operating junction temperature?
The maximum operating junction temperature is +150 °C.
From: STMicroelectronics STTH806TTI TurboSwitch Tandem 600V Ultra-Fast Boost Diode Datasheet
