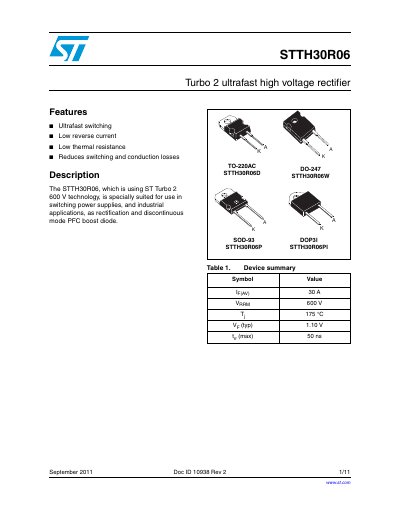

STMicroelectronics STTH30R06 Turbo 2 Ultrafast High Voltage Rectifier Datasheet
The STTH30R06 is a Turbo 2 ultrafast high voltage rectifier utilizing 600 V technology. It is specifically designed for use in switching power supplies and industrial applications, serving as a rectification and discontinuous mode PFC boost diode. Key features include ultrafast switching, low reverse current, and low thermal resistance, which help reduce switching and conduction losses.
Read onlineSTMicroelectronics STTH30R06 specifications
| Repetitive peak reverse voltage | 600 V |
|---|---|
| RMS forward current | 30 A |
| Maximum operating junction temperature | 175°C |
| Reverse recovery time (typical) | 50 ns |
| Package type | TO-247 |
Source: ST STTH30R06CW handbook
All STMicroelectronics STTH30R06 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating junction temperature?
The maximum operating junction temperature is 175 °C.
From: STMicroelectronics STTH30R06 Turbo 2 Ultrafast High Voltage Rectifier Datasheet
What is the recommended torque value for the TO-220AC package?
The recommended torque value is 0.4 to 0.6 N-m.
From: STMicroelectronics STTH30R06 Turbo 2 Ultrafast High Voltage Rectifier Datasheet
What is the maximum operating junction temperature?
The maximum operating junction temperature is 175°C.
From: ST STTH30R06CW handbook
What is the typical reverse recovery time?
The typical reverse recovery time is 50 ns.
From: ST STTH30R06CW handbook
