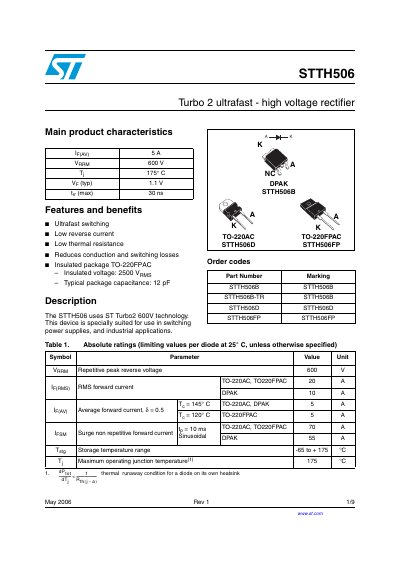

STMicroelectronics STTH506 Ultrafast Rectifier Datasheet
This document is a technical datasheet for the STTH506, an ultrafast switching diode utilizing ST Turbo2 technology. It is designed for use in switching power supplies and industrial applications, offering low reverse current and reduced conduction losses.
The datasheet provides comprehensive specifications including absolute ratings such as a repetitive peak reverse voltage of 600 V and RMS forward currents up to 20 A depending on the package. It also details thermal parameters, static electrical characteristics like forward voltage drop, and dynamic performance metrics.
STMicroelectronics STTH506 specifications
| Repetitive peak reverse voltage | 600 V |
|---|---|
| Maximum operating junction temperature | 175 °C |
| RMS forward current (TO-220AC) | 20 A |
Source: STMicroelectronics STTH506 Ultrafast Rectifier Datasheet
All STMicroelectronics STTH506 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating junction temperature for the STTH506?
The maximum operating junction temperature is 175 °C.
From: STMicroelectronics STTH506 Ultrafast Rectifier Datasheet
What is the recommended torque value for the TO-220FPAC package?
The recommended torque value is 0.80 Nm.
From: STMicroelectronics STTH506 Ultrafast Rectifier Datasheet
What is the primary application for this diode?
It is especially suited as a boost diode in continuous mode power factor correctors and hard switching conditions.
From: STMicroelectronics STTH506DTI Tandem 600V HYPERFASTBOOST DIODE Datasheet
How does this diode improve MOSFET performance?
The TURBOSWITCH “H” family drastically cuts losses in the associated MOSFET when run at high dI F/dt.
From: STMicroelectronics STTH506DTI Tandem 600V HYPERFASTBOOST DIODE Datasheet
