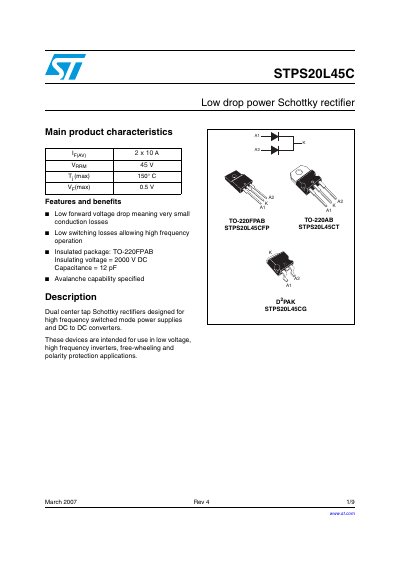

STMicroelectronics STPS20L45C Low Drop Power Schottky Rectifier Datasheet
This document provides technical specifications for the STPS20L45C, a dual center tap Schottky rectifier designed for high frequency switched mode power supplies and DC to DC converters. Key features include low forward voltage drop, low switching losses, and avalanche capability. The device is available in insulated TO-220FPAB, TO-220AB, and D2PAK packages.
Read onlineSTMicroelectronics STPS20L45C specifications
| Repetitive peak reverse voltage | 45 V |
|---|---|
| RMS forward current (TO-220FPAB) | 20 A |
| Per diode RMS forward current (TO-220AB) | 10 A |
| Maximum operating junction temperature | 150 °C |
| Package type | TO-220FPAB / TO-220AB / D2PAK |
Source: STMicroelectronics STPS20L45C Low Drop Power Schottky Rectifier Datasheet
All STMicroelectronics STPS20L45C documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the main applications for this rectifier?
These devices are intended for use in low voltage, high frequency inverters, free-wheeling and polarity protection applications.
From: STMicroelectronics STPS20L45C Low Drop Power Schottky Rectifier Datasheet
What is the recommended torque value for the package?
The recommended torque value is 0.55 Nm.
From: STMicroelectronics STPS20L45C Low Drop Power Schottky Rectifier Datasheet
What is the maximum reverse voltage rating for the STPS20L45 series?
The devices are rated for a repetitive peak reverse voltage of 45 V.
From: STMicroelectronics STPS20L45CF/CW/CT/CFP/CG Low Drop Power Schottky Rectifier Handbook
What torque values are recommended for mounting the rectifier packages?
The recommended torque is 0.55 m·N with a maximum of 0.70 m·N.
From: STMicroelectronics STPS20L45CF/CW/CT/CFP/CG Low Drop Power Schottky Rectifier Handbook
