Start here

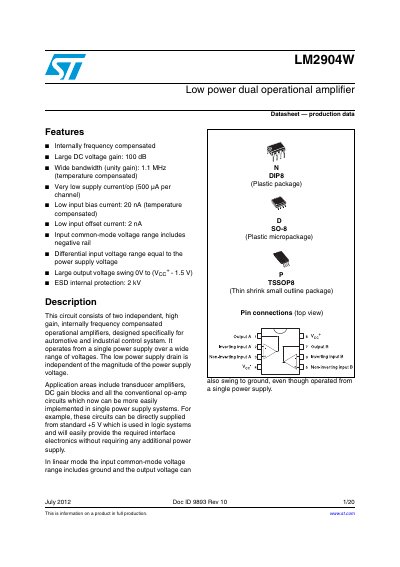

STMicroelectronics LM2904W Low Power Dual Operational Amplifier Datasheet
The document describes the LM2904W, a low-power dual operational amplifier designed specifically for automotive and industrial control systems. It features two independent, high-gain amplifiers that are internally frequency compensated and operate from a single power supply over a wide voltage range (3V to 30V). Key characteristics include very low supply current of 500 µA per channel, large DC voltage gain of 100 dB, and an input common-mode voltage range that includes the negative rail.
The datasheet details absolute maximum ratings, electrical characteristics such as input offset voltage, slew rate, and gain bandwidth product. It also provides schematic diagrams, pin connections for various packages (DIP8, SO-8, TSSOP8), and graphical representations of frequency response, output swing, and current limiting behavior under different conditions.
STMicroelectronics LM2904WH specifications
| Supply voltage range | 3 to 30 V |
|---|---|
| Large DC voltage gain | 100 dB |
| Unity gain bandwidth | 1.1 MHz |
| Supply current per channel | 500 µA |
| Input bias current | 20 nA |
| Operating temperature range | -40 to +125 °C |
Source: STMicroelectronics LM2904W Low Power Dual Operational Amplifier Datasheet
All STMicroelectronics LM2904WH documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the application areas for this amplifier?
Application areas include transducer amplifiers, DC gain blocks, and all conventional op-amp circuits implemented in single power supply systems.
From: STMicroelectronics LM2904W Low Power Dual Operational Amplifier Datasheet
Does the input common-mode voltage range include ground?
Yes, in linear mode the input common-mode voltage range includes ground even when operated from a single power supply.
From: STMicroelectronics LM2904W Low Power Dual Operational Amplifier Datasheet
What is the package type for this device?
The device is available in a D SO-8 (Plastic micropackage) and Wafer form.
From: STMicroelectronics LM2904WH Low Power Dual Operational Amplifier Datasheet
Can the input common-mode voltage range include ground?
Yes, the input common-mode voltage range includes ground even when operated from a single power supply.
From: STMicroelectronics LM2904WH Low Power Dual Operational Amplifier Datasheet
