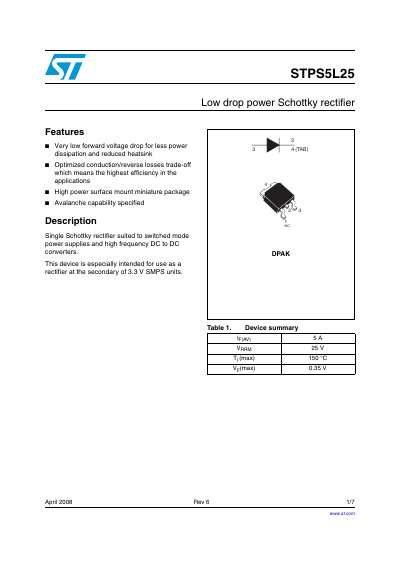

STMicroelectronics STPS5L25 Schottky Rectifier Datasheet
This document provides a comprehensive technical overview of the STPS5L25, a single Schottky rectifier designed for switched mode power supplies and high frequency DC to DC converters. Key features include a very low forward voltage drop, optimized conduction and reverse losses, and avalanche capability. The device is specifically intended for use as a rectifier at the secondary of 3.3 V SMPS units.
Read onlineSTMicroelectronics STPS5L25 specifications
| Repetitive peak reverse voltage | 25 V |
|---|---|
| Forward voltage drop (Typical) | 0.35 V |
| Junction to case thermal resistance | 2.5 °C/W |
Source: STMicroelectronics STPS5L25 Schottky Rectifier Datasheet
All STMicroelectronics STPS5L25 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the intended application for this device?
It is especially intended for use as a rectifier at the secondary of 3.3 V SMPS units.
From: STMicroelectronics STPS5L25 Schottky Rectifier Datasheet
What is the maximum average forward current?
The maximum average forward current is 6 A at a temperature of 145°C.
From: STMicroelectronics STPS5L25 Schottky Rectifier Datasheet
What is the maximum reverse voltage rating of the STPS5L25B?
The device is rated for a repetitive peak reverse voltage of 25 V.
From: STMicroelectronics STPS5L25B Low Drop Power Schottky Rectifier Datasheet
What is the typical forward voltage drop at 5 A and 25 °C?
The typical forward voltage drop is 0.47 V under those conditions.
From: STMicroelectronics STPS5L25B Low Drop Power Schottky Rectifier Datasheet
