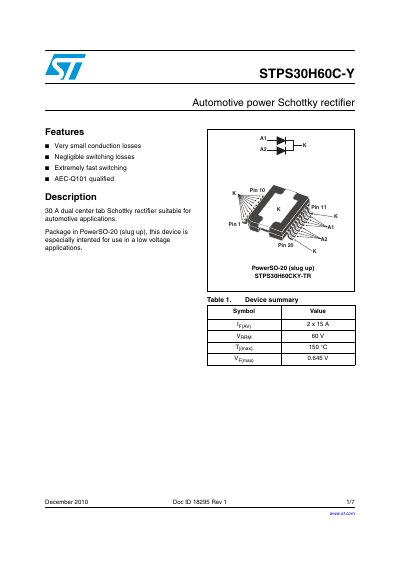

STMicroelectronics STPS30H60C-Y Automotive Power Schottky Rectifier Datasheet
The STPS30H60C-Y is a 30 A dual center tab Schottky rectifier designed specifically for automotive applications. It features very small conduction losses, negligible switching losses, and extremely fast switching speeds. The device is AEC-Q101 qualified and is packaged in a PowerSO-20 (slug up) configuration, making it especially intended for use in low voltage applications.
The document provides detailed absolute ratings, including a repetitive peak reverse voltage of 60 V and an average forward current of 30 A per device. It also includes thermal parameters, static electrical characteristics such as forward voltage drop and reverse leakage current, and ordering information for the STPS30H60CKY-TR part number.
STMicroelectronics STPS30H60C specifications
| Repetitive peak reverse voltage | 60 V |
|---|---|
| Surge non repetitive forward current | 250 A |
| Storage temperature range | -65 to +175 °C |
| Operating junction temperature range | -40 to +150 °C |
| Forward voltage drop (Typical) | 0.645 V |
Source: STMicroelectronics STPS30H60C-Y Automotive Power Schottky Rectifier Datasheet
All STMicroelectronics STPS30H60C documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Is the STPS30H60C-Y qualified for automotive use?
Yes, the device is AEC-Q101 qualified.
From: STMicroelectronics STPS30H60C-Y Automotive Power Schottky Rectifier Datasheet
What is the package type for this rectifier?
It is packaged in PowerSO-20 (slug up).
From: STMicroelectronics STPS30H60C-Y Automotive Power Schottky Rectifier Datasheet
What is the maximum operating junction temperature for the STPS30H60C?
The maximum operating junction temperature is 175 °C.
From: STMicroelectronics STPS30H60C Power Schottky Rectifier Datasheet
What is the recommended torque range for the TO-220FPAB package?
The recommended torque values are 0.4 to 0.6 N·m.
From: STMicroelectronics STPS30H60C Power Schottky Rectifier Datasheet
