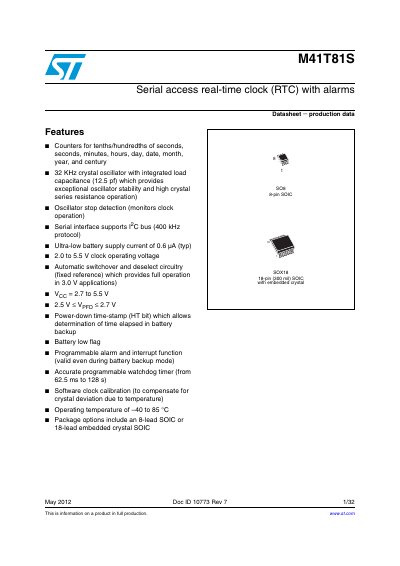

STMicroelectronics M41T81S RTC Datasheet

STMicroelectronics M41T81S RTC Datasheet

Datasheet 32 pages · 502 KB · EN

The M41T81S is a low-power serial real-time clock (RTC) featuring a built-in 32.768 kHz oscillator controlled by an external crystal or embedded in specific packages. It utilizes eight bytes of SRAM for the clock/calendar function and includes additional registers for alarms, watchdog timers, and square wave outputs.

Read online

STMicroelectronics M41T81S specifications

Supply voltage (VCC)2.7 to 5.5 V
Power-down current0.6 µA (typ)
Operating temperature-40 to 85 °C
Oscillator frequency32 KHz

Source: STMicroelectronics M41T81S RTC Datasheet

All STMicroelectronics M41T81S documents by type

Datasheet 2

Ratings, dimensions and ordering codes, for selection and design work.

Questions answered in these manuals

What is the power supply voltage range?

The device operates with a supply voltage between 2.7 V and 5.5 V.

From: STMicroelectronics M41T81S RTC Datasheet

Does the M41T81S include an oscillator?

Yes, it includes a built-in 32 KHz crystal oscillator with integrated load capacitance.

From: STMicroelectronics M41T81S RTC Datasheet

What is the operating voltage of the M41T81?

The M41T81 has a clock operating voltage of 2.0 to 5.5 V.

From: STMicroelectronics M41T81 Serial Access Real-Time Clock with Alarm Datasheet

What package is the M41T81 supplied in?

The M41T81 is supplied in an 8-pin SOIC package.

From: STMicroelectronics M41T81 Serial Access Real-Time Clock with Alarm Datasheet
