Start here

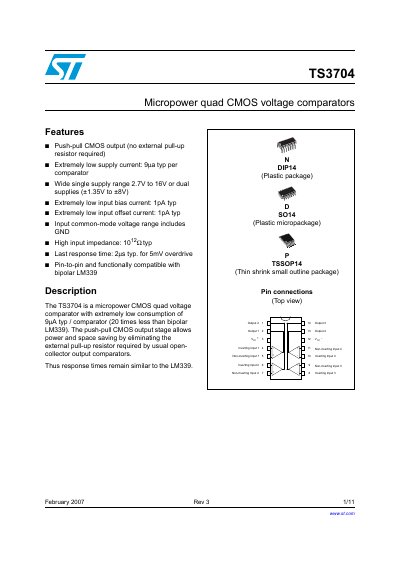

STMicroelectronics TS3704 Micropower Quad CMOS Voltage Comparator Datasheet
The TS3704 is a micropower CMOS quad voltage comparator designed for extremely low consumption, drawing only 91µA typical per comparator. It features a push-pull CMOS output stage that eliminates the need for an external pull-up resistor, saving power and space while maintaining response times similar to bipolar comparators like the LM339.
The device operates with a wide single supply range of 2.7V to 16V or dual supplies from +1.35V to +8V. It includes an input common-mode voltage range that extends to ground, making it suitable for single-supply applications. The TS3704 is available in DIP14, SO14, and TSSOP14 packages.
STMicroelectronics TS3704 specifications
| Supply current (typical) | 91µA per comparator |
|---|---|
| Input bias current (typical) | 1pA |
| Input offset current (typical) | 1pA |
| Supply voltage range (single) | 2.7V to 16V |
| Output type | Push-pull CMOS |
Source: STMicroelectronics TS3704 Micropower Quad CMOS Voltage Comparator Datasheet
All STMicroelectronics TS3704 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical supply current per comparator?
The typical supply current is 91µA per comparator.
From: STMicroelectronics TS3704 Micropower Quad CMOS Voltage Comparator Datasheet
Does the TS3704 require an external pull-up resistor?
No, the push-pull CMOS output stage eliminates the need for an external pull-up resistor.
From: STMicroelectronics TS3704 Micropower Quad CMOS Voltage Comparator Datasheet
Does the TS3704C require an external pull-up resistor?
No, it does not because it features a push-pull CMOS output stage.
From: STMicroelectronics TS3704C Quad Voltage Comparator Datasheet
Is the TS3704C compatible with the LM339?
Yes, it is pin-to-pin and functionally compatible with the bipolar LM339.
From: STMicroelectronics TS3704C Quad Voltage Comparator Datasheet
