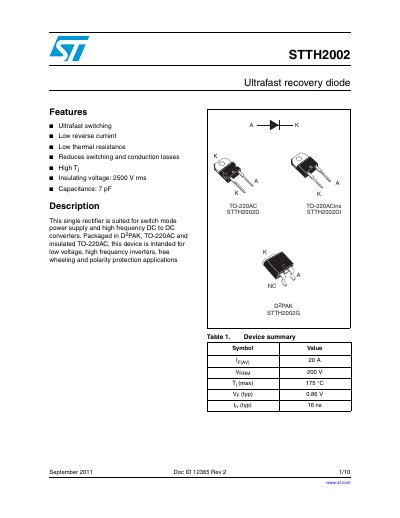

STMicroelectronics STTH2002 Ultrafast Recovery Diode Datasheet
This document provides technical specifications for the STTH2002 ultrafast recovery diode. It covers absolute maximum ratings, static and dynamic electrical characteristics, and typical application circuits for switch mode power supplies and high frequency DC to DC converters.
The datasheet includes detailed ordering information for various package types (TO-220AC, TO-220ACins, D²PAK) along with mechanical drawings and dimension tables. It also outlines the document's revision history and legal disclaimers regarding product use.
STMicroelectronics STTH2002 specifications
| Repetitive peak reverse voltage | 200 V |
|---|---|
| Forward rms current (I2PAK) | 30 A |
| Maximum operating junction temperature | 175 °C |
| Typical forward voltage drop (10A) | 0.78 V |
| Typical reverse recovery time | 22 ns |
| Package types | TO-220AB, D2PAK, TO-220FPAB, I2PAK |
Source: STMicroelectronics STTH2002C Dual Center Tap Rectifier Datasheet
All STMicroelectronics STTH2002 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the storage temperature range?
The storage temperature range is -65 to +175 °C.
From: STMicroelectronics STTH2002 Ultrafast Recovery Diode Datasheet
What are the available package options?
The STTH2002 is available in D²PAK, TO-220AC and insulated TO-220AC packages.
From: STMicroelectronics STTH2002 Ultrafast Recovery Diode Datasheet
What is the maximum operating junction temperature?
The maximum operating junction temperature is 175 °C.
From: STMicroelectronics STTH2002C Dual Center Tap Rectifier Datasheet
Is the STTH2002C suitable for SMPS?
Yes, the device is suited for SMPS and high frequency DC to DC converters.
From: STMicroelectronics STTH2002C Dual Center Tap Rectifier Datasheet
What is the maximum reverse voltage rating of the STTH2002C?
The diode can withstand a repetitive peak reverse voltage of 200 V.
What is the typical forward voltage drop at 10 A?
At a forward current of 10 A, the typical forward voltage drop is 0.78 V.
