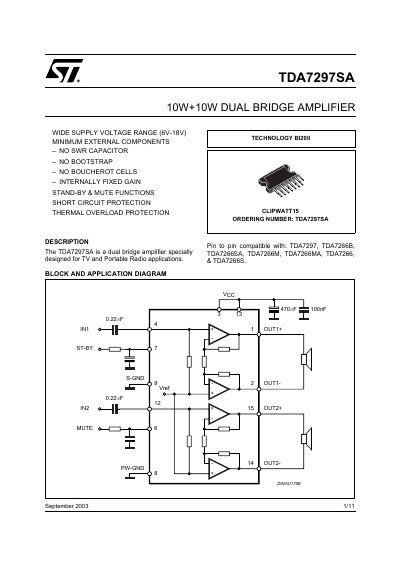

STMicroelectronics TDA7297SA Dual Bridge Amplifier Datasheet
The TDA7297SA is a 10W+10W dual bridge amplifier designed specifically for TV and portable radio applications. It features a wide supply voltage range of 6V to 18V, internally fixed gain, and includes built-in stand-by and mute functions along with short circuit and thermal overload protection.
Read onlineSTMicroelectronics TDA7297 specifications
| Supply Voltage Range | 6.5 to 18 V |
|---|---|
| Output Power (THD 10%) | 8.3 W typical, 10 W max |
| Total Harmonic Distortion (Po = 1W) | 0.1 to 0.3 % |
| Total Quiescent Current | 50 mA typical, 65 mA max |
| Operating Temperature Range | 0 to 70 °C |
Source: STMicroelectronics TDA7297SA Dual Bridge Amplifier Datasheet
All STMicroelectronics TDA7297 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the TDA7297SA?
The device operates with a supply voltage ranging from 6.5V to 18V.
From: STMicroelectronics TDA7297SA Dual Bridge Amplifier Datasheet
Does the TDA7297SA require external SWR or bootstrap capacitors?
No, it is designed to operate without an SWR capacitor, no bootstrap circuit, and no Boucherot cells.
From: STMicroelectronics TDA7297SA Dual Bridge Amplifier Datasheet
What is the supply voltage range for the TDA7297?
The device operates with a wide supply voltage range from 6V to 18V.
From: STMicroelectronics TDA7297 Dual Bridge Amplifier Datasheet
Does the TDA7297 require external SVR capacitors?
No, it is designed with minimum external components and does not require an SVR capacitor.
From: STMicroelectronics TDA7297 Dual Bridge Amplifier Datasheet
