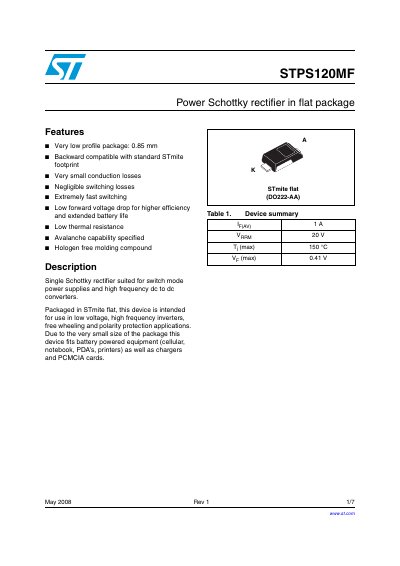

STMicroelectronics STPS120MF Power Schottky Rectifier Datasheet
This document provides technical specifications for the STPS120MF, a single Schottky rectifier packaged in the STmite flat (DO222-AA) format. It is designed for use in low voltage, high frequency inverters, free wheeling, and polarity protection applications, particularly suitable for battery-powered equipment and chargers due to its very low profile and small conduction losses.
The datasheet details absolute maximum ratings, static electrical characteristics, and thermal resistance values. It includes graphical data on conduction losses, avalanche power derating, and junction capacitance, along with package dimensions and ordering information.
STMicroelectronics STPS120M specifications
| Repetitive peak reverse voltage | 20 V |
|---|---|
| Average forward current | 1 A |
| Maximum operating junction temperature | 150°C |
| Junction to case thermal resistance | 20 °C/W |
Source: STMicroelectronics STPS120M Power Schottky Rectifier Datasheet
All STMicroelectronics STPS120M documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the package type for the STPS120MF?
The device is packaged in the STmite flat (DO222-AA) format.
From: STMicroelectronics STPS120MF Power Schottky Rectifier Datasheet
What are the applications for this rectifier?
It is intended for use in low voltage, high frequency inverters, free wheeling, and polarity protection applications.
From: STMicroelectronics STPS120MF Power Schottky Rectifier Datasheet
What is the maximum operating junction temperature for this rectifier?
The device can operate at a maximum junction temperature of 150°C.
From: STMicroelectronics STPS120M Power Schottky Rectifier Datasheet
What is the average forward current rating when the case temperature is 140°C?
The average forward current is rated at 1A with a case temperature of 140°C.
From: STMicroelectronics STPS120M Power Schottky Rectifier Datasheet
