Key facts
- Brand
- STMicroelectronics
- Model
- LMV321L
- Category
- amplifier
- Documents
- 3
- Languages
- EN
- Last added
- 2012-08-08
Start here

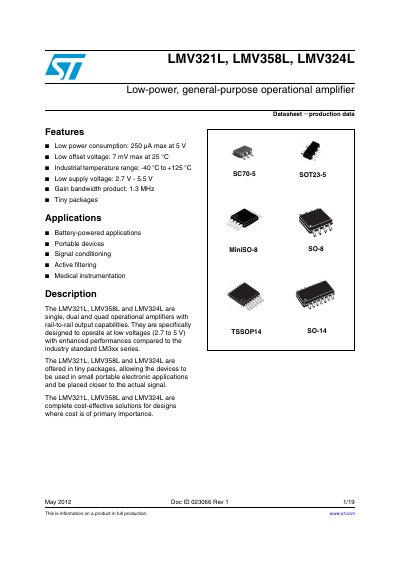

STMicroelectronics LMV321L, LMV358L, LMV324L Operational Amplifier Datasheet
The LMV321L, LMV358L, and LMV324L are single, dual, and quad operational amplifiers with rail-to-rail output capabilities. They are specifically designed to operate at low voltages (2.7 to 5 V) with enhanced performances compared to the industry standard LM3xx series. These devices are offered in tiny packages, allowing them to be used in small portable electronic applications and placed closer to the actual signal. They serve as complete cost-effective solutions for designs where cost is of primary importance, suitable for battery-powered applications, portable devices, signal conditioning, active filtering, and medical instrumentation.
Read onlineSTMicroelectronics LMV321L specifications
| Supply voltage | 2.7 V to 5.5 V |
|---|---|
| Offset voltage | 7 mV max at 25 °C |
| Temperature range | -40 °C to +125 °C |
| Gain bandwidth product | 1.3 MHz |
| Supply current (per channel) | 120 µA (No load) |
| Output swing high level | 2.6 V (RL = 10 kQ) |
Source: STMicroelectronics LMV321L, LMV358L, LMV324L Operational Amplifier Datasheet
All STMicroelectronics LMV321L documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage?
The absolute maximum supply voltage is 6 V.
From: STMicroelectronics LMV321L, LMV358L, LMV324L Operational Amplifier Datasheet
What is the maximum junction temperature?
The maximum junction temperature is 150 °C.
From: STMicroelectronics LMV321L, LMV358L, LMV324L Operational Amplifier Datasheet
What is the minimum operating voltage for these amplifiers?
The devices operate with voltages as low as 2.7 V.
From: STMicroelectronics LMV321/LMV358/LMV324 Operational Amplifiers Datasheet
Do these amplifiers have rail-to-rail input and output?
Yes, they feature both input and output rail-to-rail capabilities.
From: STMicroelectronics LMV321/LMV358/LMV324 Operational Amplifiers Datasheet
What is the operating supply voltage range for these amplifiers?
The devices operate with a supply voltage ranging from 2.7 V to 6 V.
From: STMicroelectronics LMV321-LMV358-LMV324 Low Power Operational Amplifiers Datasheet
How much current does each amplifier consume under no load conditions at 25°C?
Each amplifier consumes a typical supply current of 145 uA when there is no load.
From: STMicroelectronics LMV321-LMV358-LMV324 Low Power Operational Amplifiers Datasheet
