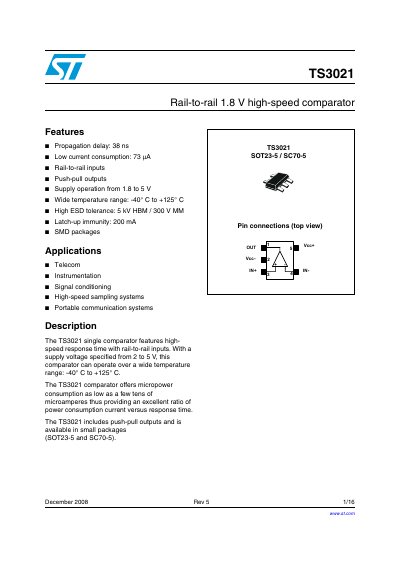

STMicroelectronics TS3021 Rail-to-Rail High-Speed Comparator Datasheet
The TS3021 is a single, high-speed comparator with rail-to-rail inputs and push-pull outputs. It is designed for applications requiring fast response times and low power consumption, such as telecom, instrumentation, and signal conditioning systems. The device supports a supply voltage range of 1.8 V to 5 V and operates over a wide temperature range of -40°C to +125°C.
The document provides detailed electrical characteristics, including input offset voltage, propagation delay, and supply current under various conditions. It also includes absolute maximum ratings, pin connections for SOT23-5 and SC70-5 packages, and graphical data illustrating current consumption and output voltage performance.
STMicroelectronics TS3021 specifications
| Propagation delay | 38 ns |
|---|---|
| Low current consumption | 73 μA |
| Supply operation | 1.8 to 5 V |
| Temperature range | -40° C to +125° C |
| ESD tolerance (HBM) | 5 kV |
| Latch-up immunity | 200 mA |
| Packages | SOT23-5 and SC70-5 |
Source: STMicroelectronics TS3021 Rail-to-Rail High-Speed Comparator Datasheet
