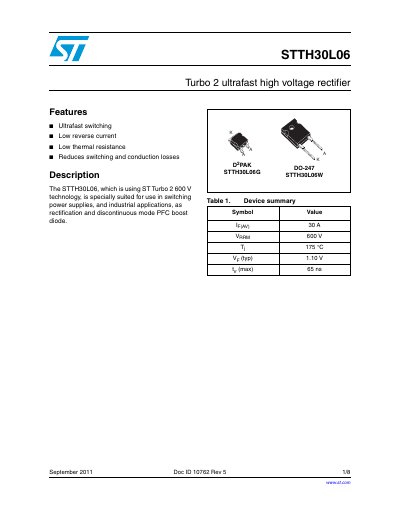

STMicroelectronics STTH30L06 Ultrafast High Voltage Rectifier Datasheet
The document describes the STTH30L06, a 600V Turbo 2 ultrafast high voltage rectifier designed for switching power supplies and industrial applications. Key features include low reverse current, low thermal resistance, and reduced switching losses. The device is available in D2PAK (STTH30L06G) and DO-247 (STTH30L06W) packages.
Read onlineSTMicroelectronics STTH30L06 specifications
| Average forward current (IF(AV)) | 30 A |
|---|---|
| Repetitive peak reverse voltage (VRRM) | 600 V |
| Maximum operating junction temperature (Tj) | 175 °C |
| Forward voltage drop (VF) typ at 30A/25°C | 1.10 V |
Source: STMicroelectronics STTH30L06 Ultrafast High Voltage Rectifier Datasheet
All STMicroelectronics STTH30L06 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum average forward current?
The maximum average forward current at a case temperature of 125 °C and duty cycle of 0.5 is 30 A.
From: STMicroelectronics STTH30L06 Ultrafast High Voltage Rectifier Datasheet
What packages are available for this device?
The STTH30L06 is available in D2PAK (Order code: STTH30L06G) and DO-247 (Order code: STTH30L06W).
From: STMicroelectronics STTH30L06 Ultrafast High Voltage Rectifier Datasheet
What are the available package options for the STTH30L06C?
The device is available in TO-220AB, D2PAK, and TO-247 packages.
From: STMicroelectronics STTH30L06C Ultrafast High Voltage Rectifier Datasheet
What is the recommended torque value for the TO-220AB package?
The recommended torque value is 0.8 m.N.
From: STMicroelectronics STTH30L06C Ultrafast High Voltage Rectifier Datasheet
