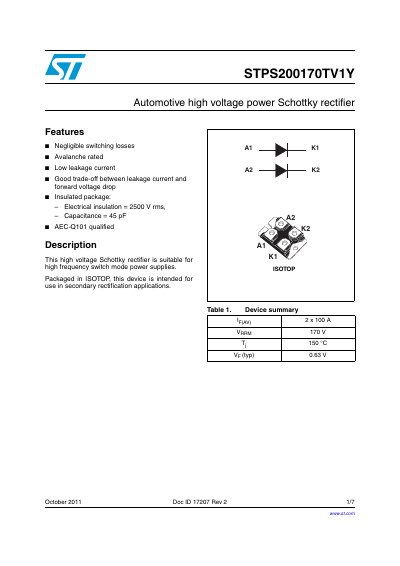

STMicroelectronics STPS200170TV1Y Automotive High Voltage Power Schottky Rectifier Datasheet
This document is a datasheet for the STPS200170TV1Y, an automotive high voltage power Schottky rectifier designed for high frequency switch mode power supplies. The device is packaged in ISOTOP and is AEC-Q101 qualified, featuring negligible switching losses and avalanche rating.
The datasheet provides absolute ratings, thermal parameters, and static electrical characteristics. It includes detailed graphs for conduction losses, forward voltage drop, and thermal impedance. Package information specifies dimensions for the ISOTOP package and recommended torque values for mounting screws.
STMicroelectronics STPS200170TV1 specifications
| Repetitive peak reverse voltage | 170 V |
|---|---|
| Forward rms current | 200 A |
| Maximum operating junction temperature | 150 °C |
| Storage temperature range | -55 to +150 °C |
| Electrical insulation | 2500 V rms |
| Capacitance | 45 pF |
Source: STMicroelectronics STPS200170TV1Y Automotive High Voltage Power Schottky Rectifier Datasheet
All STMicroelectronics STPS200170TV1 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Is the STPS200170TV1Y AEC-Q101 qualified?
Yes, the device is AEC-Q101 qualified.
From: STMicroelectronics STPS200170TV1Y Automotive High Voltage Power Schottky Rectifier Datasheet
What is the recommended torque value for the package?
The recommended torque value is 1.3 N-m.
From: STMicroelectronics STPS200170TV1Y Automotive High Voltage Power Schottky Rectifier Datasheet
How much electrical insulation does the ISOTOP package provide?
The insulated package provides 2500 V rms of electrical insulation.
From: STMicroelectronics STPS200170TV1 High Voltage Power Schottky Rectifier Datasheet
