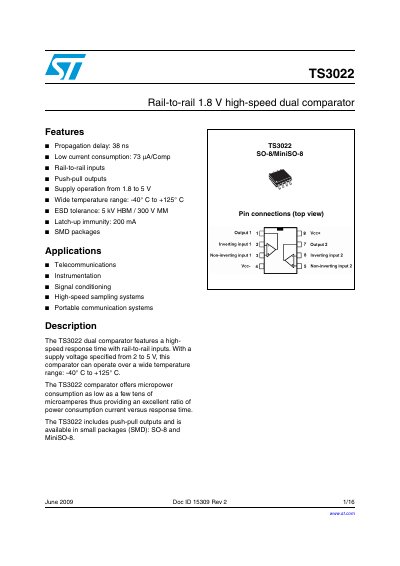

STMicroelectronics TS3022 Dual Comparator Datasheet
The TS3022 is a dual comparator designed for high-speed response with rail-to-rail inputs and push-pull outputs. It operates with a supply voltage ranging from 1.8 V to 5 V and is available in SO-8 and MiniSO-8 SMD packages. The device is optimized for applications such as telecommunications, instrumentation, and signal conditioning, offering low current consumption and a wide operating temperature range from -40°C to +125°C.
Read onlineSTMicroelectronics TS3022 specifications
| Propagation delay | 38 ns |
|---|---|
| Low current consumption | 73 µA/Comp |
| Supply operation | 1.8 to 5 V |
| Temperature range | -40° C to +125° C |
| ESD tolerance | 5 kV HBM/ 300 V MM |
| Latch-up immunity | 200 mA |
| Packages | SO-8 and MiniSO-8 |
All STMicroelectronics TS3022 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the TS3022?
The device operates with a supply voltage specified from 1.8 V to 5 V.
What are the available packages for the TS3022?
The TS3022 is available in SO-8 and MiniSO-8 SMD packages.
What is the specified supply voltage range for these comparators?
The comparators can operate with a supply voltage from 1.8V to 5.5V.
From: STMicroelectronics TS3021-TS3022 Rail-to-Rail 1.8V High-Speed Micropower Comparators Data Brief
What is the maximum response time for the TS3021-TS3022 comparators?
The device features a fast response time of 40ns.
From: STMicroelectronics TS3021-TS3022 Rail-to-Rail 1.8V High-Speed Micropower Comparators Data Brief
What are the applications for the TS302x comparators?
The TS302x comparators are suitable for Telecom, Instrumentation, and Signal conditioning applications.
From: STMicroelectronics TS3021-TS3022 Rail-to-Rail 1.8V High-Speed Micropower Comparators Datasheet
What is the response time of the TS3021-TS3022 comparators?
The TS3021-TS3022 comparators have a fast response time of 40ns.
From: STMicroelectronics TS3021-TS3022 Rail-to-Rail 1.8V High-Speed Micropower Comparators Datasheet
