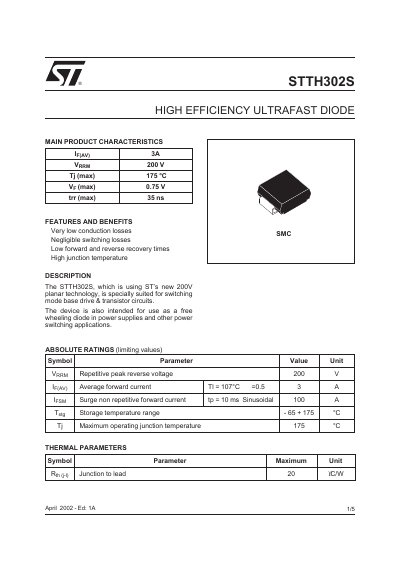

STMicroelectronics STTH302S Ultrafast Diode Datasheet
The STTH302S is a high efficiency ultrafast diode utilizing ST's new 200V planar technology. It is designed for switching mode base drive and transistor circuits, as well as for use as a free-wheeling diode in power supplies and other power switching applications. Key features include very low conduction losses, negligible switching losses, and a high maximum junction temperature of 175°C.
Read onlineSTMicroelectronics STTH302 specifications
| Average forward current (IF(av)) | 3A |
|---|---|
| Repetitive peak reverse voltage (VrRM) | 200 V |
| Maximum operating junction temperature (Tj) | 175°C |
| Reverse recovery time (trr) | 35 ns |
| Junction to lead thermal resistance (Rth(j-l)) | 20°C/W |
| Package type | SMC |
Source: STMicroelectronics STTH302S Ultrafast Diode Datasheet
All STMicroelectronics STTH302 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating junction temperature?
The maximum operating junction temperature is 175°C.
What is the package type for the STTH302S?
The STTH302S is available in the SMC package.
What is the maximum operating junction temperature for the STTH302?
The maximum operating junction temperature is 175 °C.
From: STMicroelectronics STTH302 High Efficiency Ultrafast Diode Datasheet
What is the maximum reverse recovery time for the STTH302?
The maximum reverse recovery time is 35 ns.
From: STMicroelectronics STTH302 High Efficiency Ultrafast Diode Datasheet
What is the maximum repetitive peak reverse voltage of the STTH302S?
The maximum repetitive peak reverse voltage is 200 V.
What is the average forward current rating?
The average forward current (IF(av)) is rated at 3 A.
