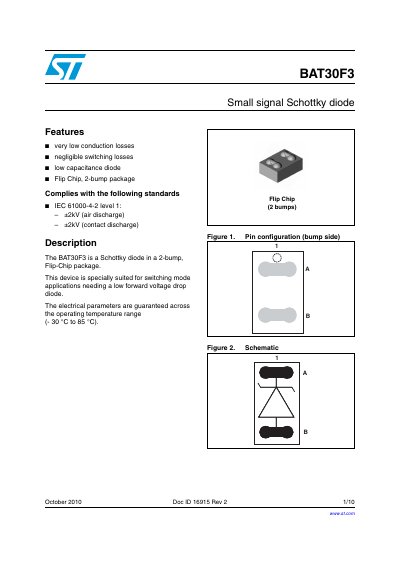

STMicroelectronics BAT30F3 Schottky Diode Datasheet
The BAT30F3 is a small signal Schottky diode designed for switching mode applications requiring a low forward voltage drop. It is housed in a Flip Chip, 2-bump package and complies with IEC 61000-4-2 level 1 standards for electrostatic discharge. The device guarantees electrical parameters across an operating temperature range of -30 °C to 85 °C.
Read onlineSTMicroelectronics BAT30 specifications
| Package type | Flip Chip, 2-bump |
|---|---|
| Peak pulse voltage (air discharge) | +2 kV |
| Peak pulse voltage (contact discharge) | +2 kV |
| Repetitive peak reverse voltage | 20 V |
| Storage temperature range | -55 to +150 °C |
| Operating junction temperature range | -30 to +85 °C |
| Forward voltage drop (typical) | 355 mV |
All STMicroelectronics BAT30 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range for the BAT30F3?
The electrical parameters are guaranteed across the operating temperature range of -30 °C to 85 °C.
What package does the BAT30F3 use?
The BAT30F3 uses a Flip Chip, 2-bump package.
What is the maximum continuous forward current for the BAT30?
The maximum continuous forward current is 300 mA.
From: STMicroelectronics BAT30 Small Signal Schottky Diodes Datasheet
What is the maximum operating junction temperature?
The maximum operating junction temperature is 150 °C.
From: STMicroelectronics BAT30 Small Signal Schottky Diodes Datasheet
