Start here

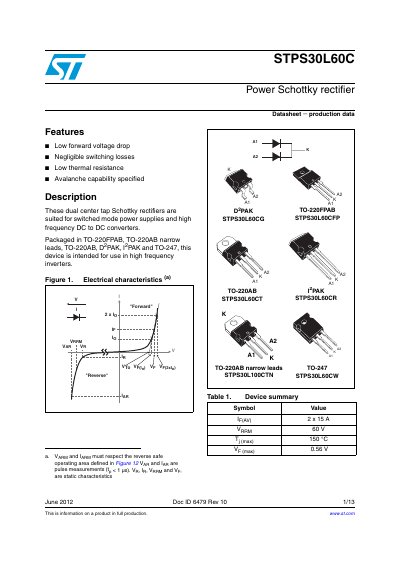

STMicroelectronics STPS30L60C Power Schottky Rectifier Datasheet
The STPS30L60C is a dual center tap Power Schottky rectifier designed for switched mode power supplies, high frequency DC to DC converters, and inverters. Key features include low forward voltage drop, negligible switching losses, and specified avalanche capability.
Available in multiple packages including TO-220AB, TO-247, D?PAK, I@PAK, and TO-220FPAB, the device supports high frequency applications. The datasheet provides absolute ratings such as a repetitive peak reverse voltage of 60V and forward RMS currents up to 30A per diode depending on the package.
All STMicroelectronics STPS30L60C documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating junction temperature?
The maximum operating junction temperature is 150 °C.
From: STMicroelectronics STPS30L60C Power Schottky Rectifier Datasheet
Which packages are available for this device?
Available packages include TO-220FPAB, TO-220AB narrow leads, TO-220AB, D?PAK, I@PAK and TO-247.
From: STMicroelectronics STPS30L60C Power Schottky Rectifier Datasheet
