Start here

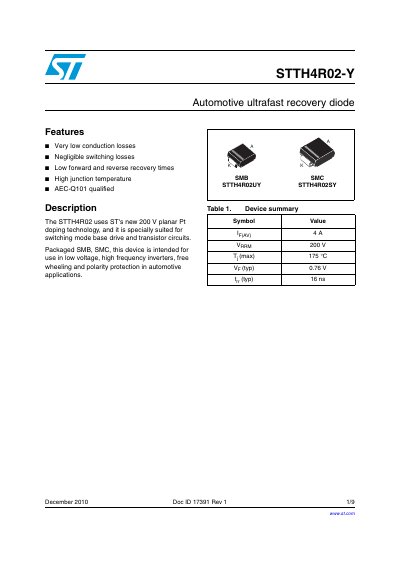

STMicroelectronics STTH4R02-Y Automotive Ultrafast Recovery Diode Datasheet
The STTH4R02-Y is an automotive-grade ultrafast recovery diode utilizing ST's 200 V planar Pt doping technology. It is designed for use in low voltage, high frequency inverters, freewheeling, and polarity protection applications within the automotive industry.
The device offers very low conduction and switching losses with a typical reverse recovery time of 16 ns at room temperature. It is available in SMB and SMC packages and is qualified to AEC-Q101 standards for use in harsh automotive environments up to a junction temperature of 175 °C.
STMicroelectronics STTH4R02 specifications
| Repetitive peak reverse voltage | 200 V |
|---|---|
| Forward rms current | 70 A |
| Surge non repetitive forward current | 70 A |
| Storage temperature range | -65 to +175 °C |
| Operating junction temperature range | -40 to +175 °C |
| Reverse recovery time (typical) | 16 ns |
| Forward voltage drop (Typ, Tj=25°C, If=4A) | 0.95 V |
Source: STMicroelectronics STTH4R02-Y Automotive Ultrafast Recovery Diode Datasheet
All STMicroelectronics STTH4R02 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the available packages for this diode?
The STTH4R02-Y is packaged in SMB and SMC formats.
From: STMicroelectronics STTH4R02-Y Automotive Ultrafast Recovery Diode Datasheet
What is the maximum junction temperature for this diode?
The operating junction temperature range extends up to +175 °C.
From: STMicroelectronics STTH4R02-Y Automotive Ultrafast Recovery Diode Datasheet
What is the recommended torque value for the TO-220AC package?
The recommended torque value is 0.4 to 0.6 N-m.
From: STMicroelectronics STTH4R02 Ultrafast Recovery Diode Datasheet
What is the maximum operating junction temperature for this diode?
The device has a maximum operating junction temperature of 175 °C.
From: STMicroelectronics STTH4R02 Ultrafast Recovery Diode Datasheet
