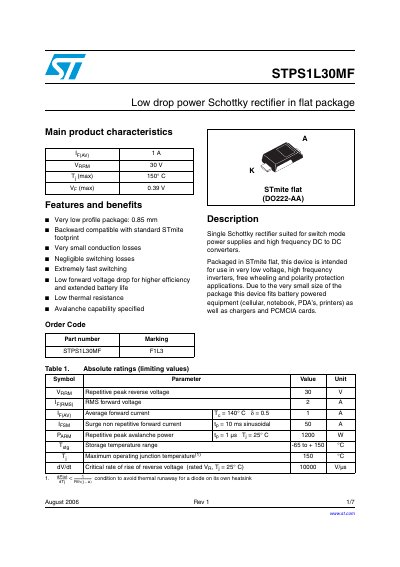

STMicroelectronics STPS1L30MF Schottky Rectifier Datasheet
This document is a datasheet for the STPS1L30MF, a single Schottky rectifier designed for switch mode power supplies and high frequency DC to DC converters. It features a very low profile STmite flat package with a 0.85 mm footprint, making it suitable for battery powered equipment and chargers.
The document provides absolute ratings, static electrical characteristics, and thermal resistance data. It also includes graphical representations of conduction losses, avalanche power derating, and reverse leakage current versus temperature. Package dimensions and ordering information are provided at the end.
STMicroelectronics STPS1L30 specifications
| Repetitive peak reverse voltage | 30 V |
|---|---|
| Maximum operating junction temperature | 150° C |
| Forward voltage drop (typical) | 0.39 V |
| Package footprint | 0.85 mm |
| Junction to case thermal resistance | 20 °C/W |
| Junction to ambient thermal resistance | 250 °C/W |
Source: STMicroelectronics STPS1L30MF Schottky Rectifier Datasheet
All STMicroelectronics STPS1L30 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating junction temperature?
The maximum operating junction temperature is 150° C.
From: STMicroelectronics STPS1L30MF Schottky Rectifier Datasheet
What is the typical forward voltage drop?
The typical forward voltage drop is 0.39 V at 1A.
From: STMicroelectronics STPS1L30MF Schottky Rectifier Datasheet
What is the typical forward voltage drop at 1A?
The typical forward voltage drop (Vf) is 0.39 V when the junction temperature is 25°C.
From: STMicroelectronics STPS1L30M Low Drop Power Schottky Rectifier Datasheet
What is the maximum operating junction temperature for this rectifier?
The maximum operating junction temperature is 150°C.
From: STMicroelectronics STPS1L30M Low Drop Power Schottky Rectifier Datasheet
What is the maximum operating junction temperature for this rectifier?
The maximum operating junction temperature is 150°C.
From: STMicroelectronics STPS1L30 Low Drop Power Schottky Rectifier Datasheet
What are the dimensions of the SMA package lead length (L)?
The lead length for the SMA package ranges from a minimum of 0.75 mm to a maximum of 1.60 mm.
From: STMicroelectronics STPS1L30 Low Drop Power Schottky Rectifier Datasheet
