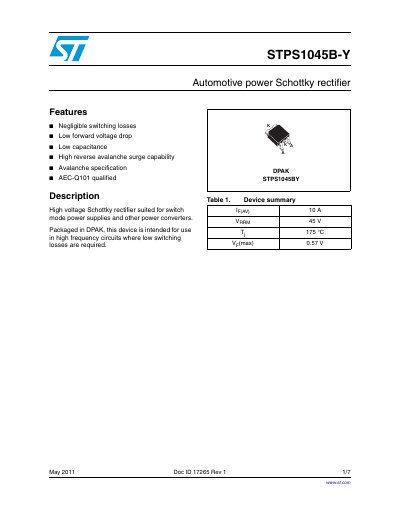

STMicroelectronics STPS1045B-Y Automotive Power Schottky Rectifier Datasheet
The STPS1045B-Y is a high voltage Schottky rectifier designed for use in switch mode power supplies and other power converters. It is packaged in DPAK and is intended for high frequency circuits where low switching losses are required. The device features negligible switching losses, low forward voltage drop, low capacitance, and high reverse avalanche surge capability.
Read onlineSTMicroelectronics STPS1045 specifications
| Repetitive peak reverse voltage | 45 V |
|---|---|
| Forward rms current | 7 A |
| Forward voltage drop (max) | 0.57 V |
| Package | DPAK |
| Reverse leakage current (max) | 15 mA |
Source: STMicroelectronics STPS1045B-Y Automotive Power Schottky Rectifier Datasheet
All STMicroelectronics STPS1045 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- STMicroelectronics STPS1045B-Y Automotive Power Schottky Rectifier Datasheet 7 p
- STMicroelectronics STPS1045B Power Schottky Rectifier Datasheet 7 p
- STMicroelectronics STPS1045 Power Schottky Rectifier Datasheet 8 p
- STMicroelectronics STPS1045HR Aerospace Schottky Rectifier Datasheet 8 p
- STMicroelectronics STPS1045B Datasheet 5 p
Questions answered in these manuals
Is the STPS1045B-Y qualified for automotive applications?
Yes, the device is AEC-Q101 qualified.
From: STMicroelectronics STPS1045B-Y Automotive Power Schottky Rectifier Datasheet
What is the package type for the STPS1045B-Y?
The device is packaged in DPAK.
From: STMicroelectronics STPS1045B-Y Automotive Power Schottky Rectifier Datasheet
What is the maximum operating junction temperature for this device?
The maximum operating junction temperature is rated at 175 °C.
From: STMicroelectronics STPS1045B Power Schottky Rectifier Datasheet
How much forward rms current can this rectifier handle continuously?
It supports a forward rms current of up to 7 A.
From: STMicroelectronics STPS1045B Power Schottky Rectifier Datasheet
What is the storage temperature range?
The device can be stored between -65 and +175 °C.
From: STMicroelectronics STPS1045 Power Schottky Rectifier Datasheet
What is the recommended torque for mounting?
The recommended torque value is 0.55 Nm.
From: STMicroelectronics STPS1045 Power Schottky Rectifier Datasheet
