Key facts
- Brand
- STMicroelectronics
- Model
- TDA7496
- Category
- amplifier
- Documents
- 2
- Languages
- EN
- Last added
- 2012-08-08
Start here

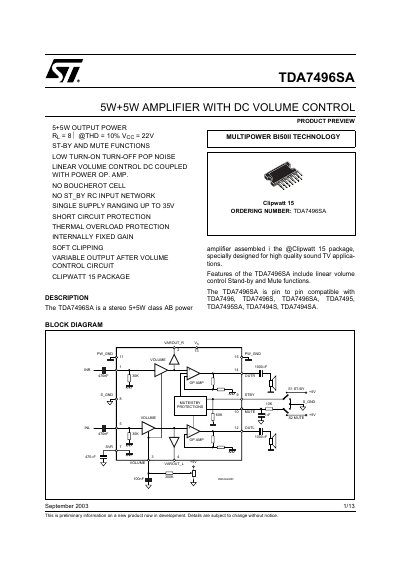

STMicroelectronics TDA7496SA 5+5W Amplifier Datasheet
Datasheet 13 pages · 544 KB · EN
The TDA7496SA is a stereo 5+5W class AB power amplifier assembled in the Clipwatt15 package. It is specially designed for high quality sound TV applications and features linear volume control, stand-by and mute functions. The device includes short circuit protection, thermal overload protection, and low turn-on/turn-off pop noise.
Read onlineSTMicroelectronics TDA7496 specifications
| Output Power (THD=10%, RL=8Ω) | 5+5W |
|---|---|
| Supply Voltage Range | 10 to 32 V |
| Total Harmonic Distortion (THD) | 0.4 % at Po=1W, f = 1KHz |
| Closed Loop Gain | 28.5 to 31.5 dB |
| Package Type | Clipwatt 15 |
Source: STMicroelectronics TDA7496SA 5+5W Amplifier Datasheet
All STMicroelectronics TDA7496 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range?
The ambient operating temperature ranges from 0 to 70 °C.
Does this amplifier have short circuit protection?
Yes, the TDA7496SA includes short circuit protection.
Is the TDA7496 compatible with other ST models?
Yes, it is pin to pin compatible with several related amplifiers.
What are the protection features of the TDA7496?
The device includes short circuit protection and thermal overload protection.
