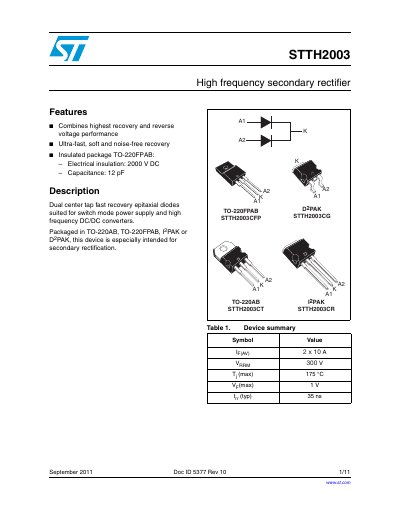

STMicroelectronics STTH2003 High Frequency Secondary Rectifier Datasheet
The STTH2003 is a high frequency secondary rectifier designed for switch mode power supply and high frequency DC/DC converters. It consists of dual center tap fast recovery epitaxial diodes packaged in TO-220AB, TO-220FPAB, D2PAK, or I2PAK formats. The device combines the highest recovery and reverse voltage performance with ultra-fast, soft, and noise-free recovery characteristics.
Read onlineSTMicroelectronics STTH2003 specifications
| Repetitive peak reverse voltage | 300 V |
|---|---|
| Forward current rms | 30 A |
| Average forward current (TO-220AB) | 10 A |
| Surge non repetitive forward current | 110 A |
| Maximum operating junction temperature | 175 °C |
| Reverse recovery time (typical) | 35 ns |
| Reverse leakage current (Tj = 125°C) | 300 uA |
Source: STMicroelectronics STTH2003 High Frequency Secondary Rectifier Datasheet
All STMicroelectronics STTH2003 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating junction temperature for the STTH2003?
The maximum operating junction temperature is 175 °C.
From: STMicroelectronics STTH2003 High Frequency Secondary Rectifier Datasheet
What is the recommended torque value for mounting the device?
The recommended torque value is 0.4 to 0.6 N-m.
From: STMicroelectronics STTH2003 High Frequency Secondary Rectifier Datasheet
What is the maximum repetitive peak reverse voltage for the STTH2003 diodes?
The maximum repetitive peak reverse voltage is 300 V.
What is the reverse recovery time (trr) specification?
The reverse recovery time is specified as a maximum of 35 ns.
