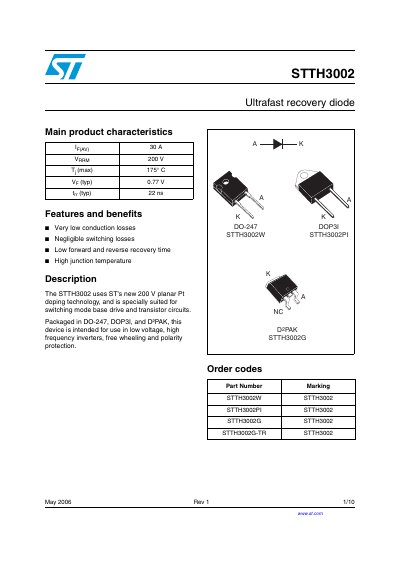

STMicroelectronics STTH3002 Ultrafast Recovery Diode Datasheet
The STTH3002 is an ultrafast recovery diode utilizing ST's 200 V planar Pt doping technology. It features very low conduction and switching losses, making it suitable for switching mode base drive, transistor circuits, low voltage high frequency inverters, free wheeling, and polarity protection applications.
Read onlineSTMicroelectronics STTH3002 specifications
| RMS forward current (DO-247) | 50 A |
|---|---|
| Surge non repetitive forward current | 300 A |
| Maximum operating junction temperature | 175 °C |
| Reverse recovery time (typical) | 22 ns |
| Forward voltage drop (typical, Tj=25°C) | 0.77 V |
Source: STMicroelectronics STTH3002 Ultrafast Recovery Diode Datasheet
All STMicroelectronics STTH3002 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the available packages for the STTH3002?
The device is packaged in DO-247, DOP3I, and D?PAK formats.
From: STMicroelectronics STTH3002 Ultrafast Recovery Diode Datasheet
What is the recommended torque value for installation?
The recommended torque value is 0.8 Nm.
From: STMicroelectronics STTH3002 Ultrafast Recovery Diode Datasheet
What is the maximum operating junction temperature for this diode?
The maximum operating junction temperature is 175 °C.
From: STMicroelectronics STTH3002C Ultrafast Diode Datasheet
How much torque should be applied when mounting the TO-247 package?
The recommended torque is 0.55 N·m, with a maximum of 1.0 N·m.
From: STMicroelectronics STTH3002C Ultrafast Diode Datasheet
