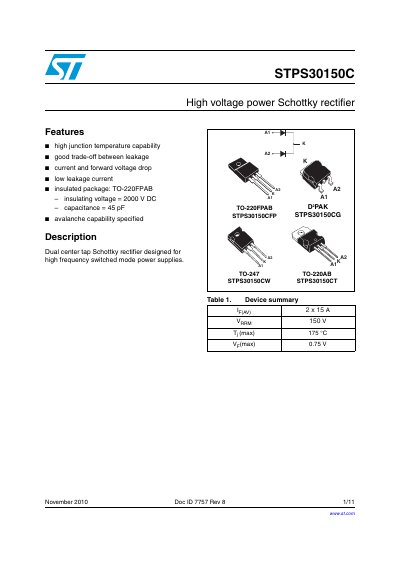

STMicroelectronics STPS30150C High Voltage Power Schottky Rectifier Datasheet
This document provides a comprehensive technical overview of the STPS30150C, a dual center tap Schottky rectifier designed for high frequency switched mode power supplies. Key features include a high junction temperature capability of 175°C, low leakage current, and an insulated TO-220FPAB package with an insulating voltage of 2000 V DC.
The datasheet details absolute maximum ratings, static electrical characteristics, and thermal resistance values for various package types including TO-220FPAB, TO-220AB, TO-247, and D2PAK. It also includes ordering information for different package variants and revision history for the document.
STMicroelectronics STPS30150C specifications
| Repetitive peak reverse voltage | 150 V |
|---|---|
| Forward rms current | 30 A |
| Maximum operating junction temperature | 175 °C |
| Insulating voltage (TO-220FPAB) | 2000 V DC |
| Capacitance (TO-220FPAB) | 45 pF |
Source: STMicroelectronics STPS30150C High Voltage Power Schottky Rectifier Datasheet
All STMicroelectronics STPS30150C documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating junction temperature?
The maximum operating junction temperature is 175 °C.
From: STMicroelectronics STPS30150C High Voltage Power Schottky Rectifier Datasheet
What is the repetitive peak reverse voltage?
The repetitive peak reverse voltage is 150 V.
From: STMicroelectronics STPS30150C High Voltage Power Schottky Rectifier Datasheet
