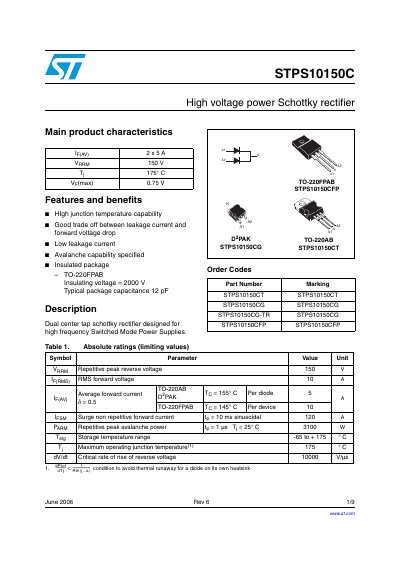

STMicroelectronics STPS10150C High Voltage Power Schottky Rectifier Datasheet
This document provides technical specifications for the STPS10150C, a high voltage power Schottky rectifier designed for high frequency Switched Mode Power Supplies. The device features a dual center tap configuration with a repetitive peak reverse voltage of 150 V and an RMS forward current of 10 A.
Read onlineSTMicroelectronics STPS10150C specifications
| Repetitive peak reverse voltage | 150 V |
|---|---|
| RMS forward current | 10 A |
| Maximum operating junction temperature | 175 °C |
| Storage temperature range | -65 to +175 °C |
| Reverse leakage current (typical) | 2.0 mA |
Source: STMicroelectronics STPS10150C High Voltage Power Schottky Rectifier Datasheet
All STMicroelectronics STPS10150C documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical package capacitance?
The typical package capacitance is 12 pF.
From: STMicroelectronics STPS10150C High Voltage Power Schottky Rectifier Datasheet
Is the package insulated?
Yes, the package is insulated.
From: STMicroelectronics STPS10150C High Voltage Power Schottky Rectifier Datasheet
What is the maximum reverse voltage rating of the STPS10150CT/CG?
The device is rated for a repetitive peak reverse voltage of 150 V.
What forward current can the STPS10150CT/CG handle continuously?
It can carry up to 10 A RMS forward current, with an average forward current of 5 A per diode.
