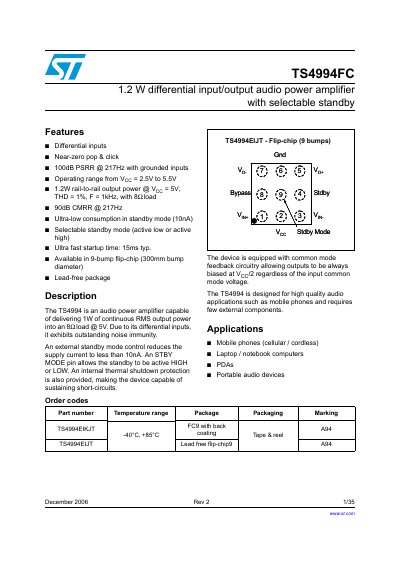

STMicroelectronics TS4994FC Audio Power Amplifier Datasheet
The TS4994FC is a 1.2W rail-to-rail output audio power amplifier designed for mobile phones and portable audio devices. It features differential inputs for outstanding noise immunity and a selectable standby mode that reduces supply current to less than 10nA. The device operates with a supply voltage ranging from 2.5V to 5.5V and includes internal thermal shutdown protection.
Read onlineSTMicroelectronics TS4994 specifications
| Output power | 1.2W |
|---|---|
| Supply voltage | 2.5V to 5.5V |
| Supply current (no load) | 7 mA |
| Standby current | 10 nA |
| Gain bandwidth product | 2 MHz |
| Wake-up time | 15 ms |
Source: STMicroelectronics TS4994FC Audio Power Amplifier Datasheet
