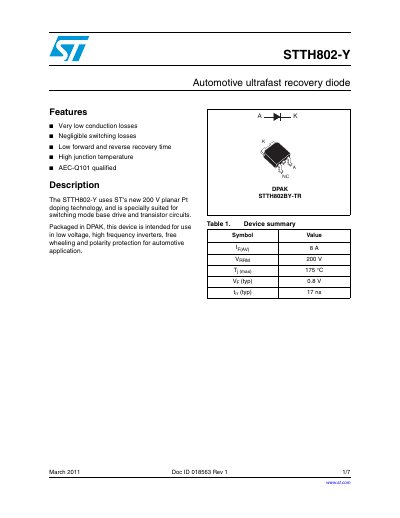

STMicroelectronics STTH802-Y Automotive Ultrafast Recovery Diode Datasheet
The STTH802-Y is an automotive ultrafast recovery diode utilizing ST's 200 V planar Pt doping technology. It is designed for low voltage, high frequency inverters, free wheeling, and polarity protection applications. The device is AEC-Q101 qualified and packaged in DPAK.
Key features include very low conduction and switching losses, low forward and reverse recovery time, and a high junction temperature capability of 175 °C. The document provides absolute ratings, static and dynamic electrical characteristics, thermal parameters, and package dimensions.
STMicroelectronics STTH802 specifications
| Forward rms current | 16 A |
|---|---|
| Maximum operating junction temperature | 175 °C |
| Reverse recovery time | 17 ns |
| Forward voltage drop | 0.8 V |
| Junction to case thermal resistance | 3.2 °C/W |
Source: STMicroelectronics STTH802-Y Automotive Ultrafast Recovery Diode Datasheet
All STMicroelectronics STTH802 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the package type for the STTH802-Y?
The device is packaged in DPAK.
From: STMicroelectronics STTH802-Y Automotive Ultrafast Recovery Diode Datasheet
Is the STTH802-Y qualified for automotive applications?
Yes, the device is AEC-Q101 qualified.
From: STMicroelectronics STTH802-Y Automotive Ultrafast Recovery Diode Datasheet
What are the available packages for the STTH802?
The device is available in TO-220AC, TO-220FPAC, DPAK, and D²PAK packages.
From: STMicroelectronics STTH802 Ultrafast Recovery Diode Datasheet
What is the maximum operating junction temperature?
The maximum operating junction temperature is 175 °C.
From: STMicroelectronics STTH802 Ultrafast Recovery Diode Datasheet
What is the maximum operating junction temperature?
The maximum operating junction temperature is 175°C.
From: STMicroelectronics STTH802CT/CB/CFP High Efficiency Ultrafast Diode Datasheet
What are the available packages for this diode?
The device is packaged in DPAK, TO-220AB, or TO-220FPAB.
From: STMicroelectronics STTH802CT/CB/CFP High Efficiency Ultrafast Diode Datasheet
