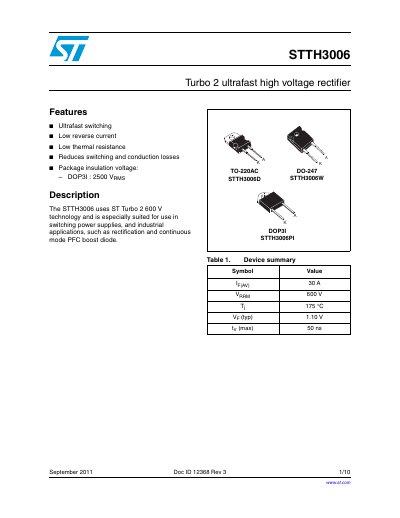

STMicroelectronics STTH3006 Turbo 2 Ultrafast High Voltage Rectifier Datasheet
The STTH3006 is a Turbo 2 ultrafast high voltage rectifier designed for use in switching power supplies and industrial applications, such as rectification and continuous mode PFC boost diodes. It utilizes ST Turbo 2 600 V technology to reduce switching and conduction losses while maintaining low reverse current and thermal resistance.
Read onlineSTMicroelectronics STTH3006 specifications
| Repetitive Peak Reverse Voltage | 600 V |
|---|---|
| Maximum Operating Junction Temperature | 175 °C |
| Reverse Recovery Time (Typical) | 50 ns |
| Forward Voltage Drop (Typical) | 110 mV |
Source: STMicroelectronics STTH3006 Turbo 2 Ultrafast High Voltage Rectifier Datasheet
All STMicroelectronics STTH3006 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the recommended torque values for the TO-220AC package?
The recommended torque value is 0.4 to 0.6 N-m.
From: STMicroelectronics STTH3006 Turbo 2 Ultrafast High Voltage Rectifier Datasheet
Is the STTH3006 suitable for automotive applications?
ST products not specified as "Automotive Grade" may only be used in automotive applications at the user's own risk.
From: STMicroelectronics STTH3006 Turbo 2 Ultrafast High Voltage Rectifier Datasheet
What is the maximum operating junction temperature for this diode?
The maximum operating junction temperature is +150 °C.
From: STMicroelectronics STTH3006DPI Tandem 600V Hyperfast Boost Diode Datasheet
What is the RMS forward current rating?
The RMS forward current rating is 32 A.
From: STMicroelectronics STTH3006DPI Tandem 600V Hyperfast Boost Diode Datasheet
