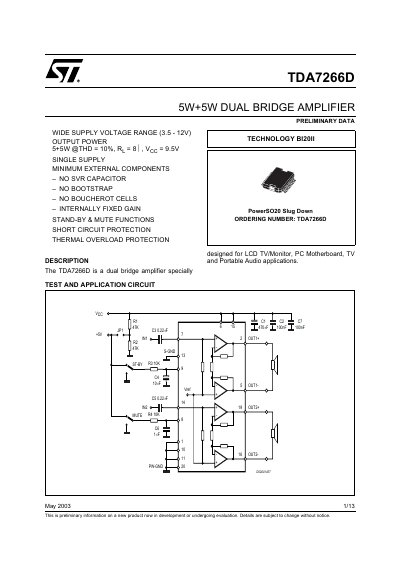

STMicroelectronics TDA7266D Dual Bridge Amplifier Datasheet
The document describes the TDA7266D, a dual bridge amplifier specifically designed for LCD TV/Monitor, PC Motherboard, TV, and Portable Audio applications. It features a wide supply voltage range (3.5 - 12V), single supply operation, and includes built-in stand-by and mute functions along with short circuit and thermal overload protection.
Read onlineSTMicroelectronics TDA7266D specifications
| Supply Voltage Range | 8 to 18 V |
|---|---|
| Output Peak Current | 2 A |
| Total Power Dissipation | 33 W |
| Operating Temperature | -40 to +70 °C |
| Output Power (THD = 10%) | 6.3 W |
| Total Harmonic Distortion (Po = 1W) | 0.05 to 0.2 % |
| Crosstalk | 46 to 60 dB |
| Mute Attenuation | 60 to 80 dB |
Source: STMicroelectronics TDA7266 Dual Bridge Amplifier Datasheet
All STMicroelectronics TDA7266D documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage for the TDA7266D?
The absolute maximum rating for the supply voltage is 20 V.
From: STMicroelectronics TDA7266D Dual Bridge Amplifier Datasheet
Does the TDA7266D require external bootstrap capacitors?
No, it does not require any bootstrap cells or external SVR capacitors.
From: STMicroelectronics TDA7266D Dual Bridge Amplifier Datasheet
What is the supply voltage range for the TDA7266?
The supply voltage range is 8V to 18V.
From: STMicroelectronics TDA7266 Dual Bridge Amplifier Datasheet
Does the TDA7266 require an external SWR capacitor?
No, the device requires no SWR capacitor.
From: STMicroelectronics TDA7266 Dual Bridge Amplifier Datasheet
