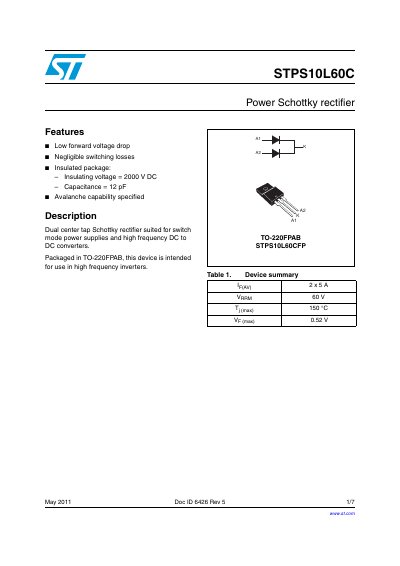

STMicroelectronics STPS10L60C Power Schottky Rectifier Datasheet
The STPS10L60C is a dual center tap Schottky rectifier designed for use in switch mode power supplies and high frequency DC to DC converters. It is packaged in a TO-220FPAB insulated package with an insulating voltage of 2000 V DC and a capacitance of 12 pF. The device is intended for use in high frequency inverters.
Read onlineSTMicroelectronics STPS10L60C specifications
| Repetitive peak reverse voltage | 60 V |
|---|---|
| Forward voltage drop (max) | 0.52 V |
| Insulating voltage | 2000 V DC |
| Package type | TO-220FPAB |
Source: STMicroelectronics STPS10L60C Power Schottky Rectifier Datasheet
