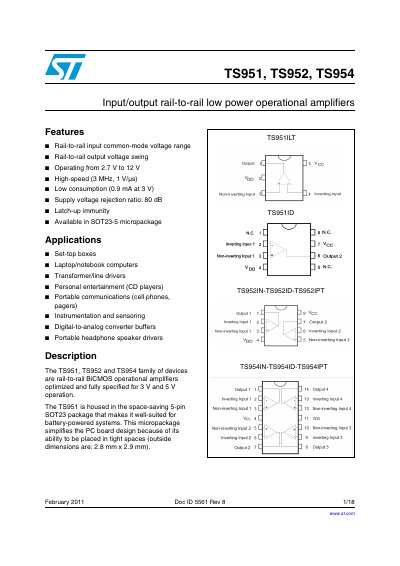

STMicroelectronics TS951/TS952/TS954 Operational Amplifiers Datasheet
This document provides technical specifications and characteristics for the TS951, TS952, and TS954 family of rail-to-rail BICMOS operational amplifiers. These devices are optimized for 3 V and 5 V operation and are available in various packages including the space-saving SOT23-5 micropackage.
The datasheet details absolute maximum ratings, electrical characteristics under different supply voltages (3 V and 5 V), and performance graphs. It covers parameters such as input offset voltage, supply current, gain bandwidth product, and total harmonic distortion, along with application examples for set-top boxes, laptops, and instrumentation.
STMicroelectronics TS952 specifications
| Supply voltage range | 2.7 V to 12 V |
|---|---|
| Supply current (per amplifier) | 0.9 mA |
| Gain bandwidth product | 4 MHz |
| Slew rate | 1 V/us |
| Common mode rejection ratio | 50 to 80 dB |
| Operating temperature range | -40 to +125 °C |
Source: STMicroelectronics TS951/TS952/TS954 Operational Amplifiers Datasheet
All STMicroelectronics TS952 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for these amplifiers?
The devices operate from a supply voltage of 2.7 V to 12 V.
From: STMicroelectronics TS951/TS952/TS954 Operational Amplifiers Datasheet
What is the typical supply current per amplifier?
The typical supply current is 0.9 mA at 3 V.
From: STMicroelectronics TS951/TS952/TS954 Operational Amplifiers Datasheet
What supply voltage range do the TS951, TS952 and TS954 support?
They operate from 2.7 V up to 12 V.
From: STMicroelectronics TS951/TS952/TS954 Operational Amplifier Datasheet
In which package are the TS951/TS952/TS954 offered?
They are available in a 5‑pin SOT23‑5 micropackage.
From: STMicroelectronics TS951/TS952/TS954 Operational Amplifier Datasheet
What is the operating supply voltage range for the TS951‑TS952‑TS954 amplifiers?
They operate from 2.7 V up to 12 V.
From: STMicroelectronics TS951-TS952-TS954 Operational Amplifier Datasheet
What is the maximum output short‑circuit current?
The output short‑circuit current is limited to 10 mA.
From: STMicroelectronics TS951-TS952-TS954 Operational Amplifier Datasheet
