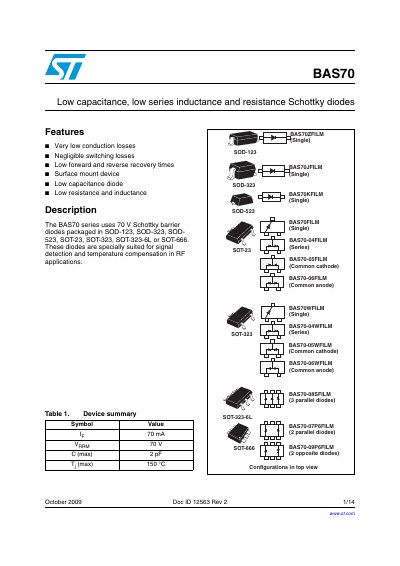

STMicroelectronics BAS70 Schottky Diode Datasheet
Datasheet 14 pages · 180 KB · EN
The BAS70 series consists of 70 V Schottky barrier diodes available in various surface mount packages including SOD-123, SOD-323, SOD-523, SOT-23, SOT-323, SOT-323-6L, and SOT-666. These devices are specifically designed for signal detection and temperature compensation in RF applications due to their very low conduction losses and negligible switching losses.
Read onlineSTMicroelectronics BAS70 specifications
| Repetitive peak reverse voltage | 70 V |
|---|---|
| Continuous forward current | 70 mA |
| Surge non repetitive forward current | 1 A |
| Maximum operating junction temperature | 150 °C |
| Diode capacitance (typical) | 2 pF |
| Series inductance | 1.5 nH |
