Start here

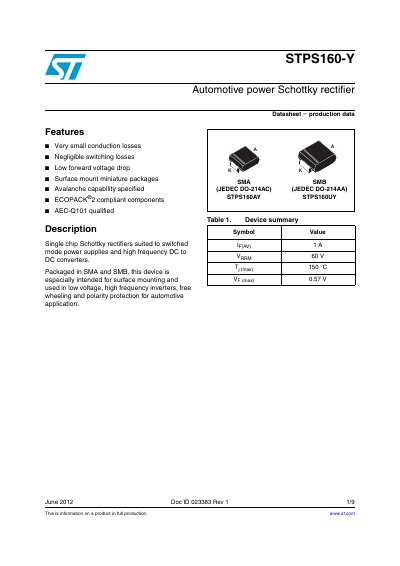

STMicroelectronics STPS160-Y Automotive Power Schottky Rectifier Datasheet
This document is a production data datasheet for the STPS160-Y single chip Schottky rectifier. The device is designed for switched mode power supplies and high frequency DC to DC converters, specifically intended for automotive applications such as low voltage inverters and free wheeling circuits.
The rectifier is available in two surface mount miniature packages: SMA (JEDEC DO-214AC) and SMB (JEDEC DO-214AA). Key features include very small conduction losses, negligible switching losses, and an avalanche capability specified for the device. The components are ECOPACK®2 compliant and AEC-Q101 qualified.
STMicroelectronics STPS160 specifications
| Average forward current (IF(AV)) | 1 A |
|---|---|
| Repetitive peak reverse voltage (VRRM) | 60 V |
| Forward voltage drop max at 25°C (IF=1A) | 0.67 V |
| Package types | SMA, SMB |
Source: STMicroelectronics STPS160-Y Automotive Power Schottky Rectifier Datasheet
All STMicroelectronics STPS160 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the available package options for the STPS160-Y?
The device is packaged in SMA (JEDEC DO-214AC) and SMB (JEDEC DO-214AA).
From: STMicroelectronics STPS160-Y Automotive Power Schottky Rectifier Datasheet
Is the STPS160-Y qualified for automotive applications?
Yes, it is AEC-Q101 qualified.
From: STMicroelectronics STPS160-Y Automotive Power Schottky Rectifier Datasheet
What is the maximum operating junction temperature for this rectifier?
The device can operate at a maximum junction temperature of 150 °C.
From: STMicroelectronics STPS160H100TV High Voltage Power Schottky Rectifier Datasheet
What is the recommended torque value for tightening this package?
The recommended torque value for installation is 1.3 N.m.
From: STMicroelectronics STPS160H100TV High Voltage Power Schottky Rectifier Datasheet
What are the available packages for the STPS160?
The device is packaged in SMA and SMB surface mount miniature packages.
From: STMicroelectronics STPS160 Power Schottky Rectifier Datasheet
What is the maximum operating junction temperature?
The maximum operating junction temperature (T_J) is 150 °C.
From: STMicroelectronics STPS160 Power Schottky Rectifier Datasheet
