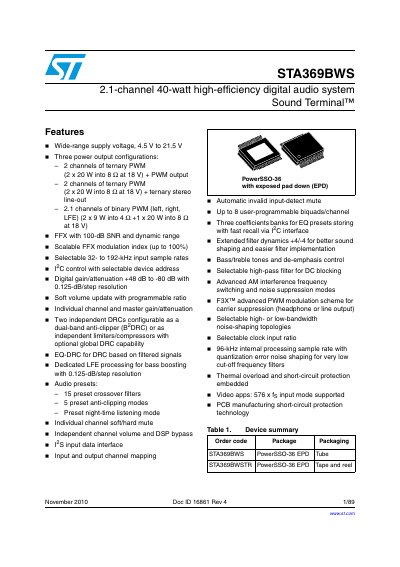

ST STA369BWS 2.1-channel 40-watt high-efficiency digital audio system Sound Terminal handbook
The STA369BWS is a 2.1-channel 40-watt high-efficiency digital audio system designed for automotive applications. It features wide-range supply voltage support (4.5 V to 21.5 V) and offers three power output configurations, including ternary PWM and binary PWM modes.
The device includes advanced audio processing capabilities such as FFX with 100-dB SNR, selectable input sample rates up to 192-kHz, and digital gain/attenuation ranging from +48 dB to -80 dB. It supports various dynamic range control (DRC) modes, including dual-band anti-clipper and independent limiters/compressors, along with EQ presets and dedicated LFE processing.
STMicroelectronics STA369BW specifications
| Supply voltage range | 4.5 V to 21.5 V |
|---|---|
| Power output (ternary PWM) | 2 x 20 W into 8 Ohm at 18 V |
| Power output (binary PWM) | 2 x 9 W into 4 Ohm + 1 x 20 W into 8 Ohm |
| Signal-to-noise ratio | 100 dB |
| Input sample rates | 32 to 192 kHz |
| Digital gain/attenuation range | +48 dB to -80 dB |
| Internal processing sample rate | 96 kHz |
Source: ST STA369BWS 2.1-channel 40-watt high-efficiency digital audio system Sound Terminal handbook
