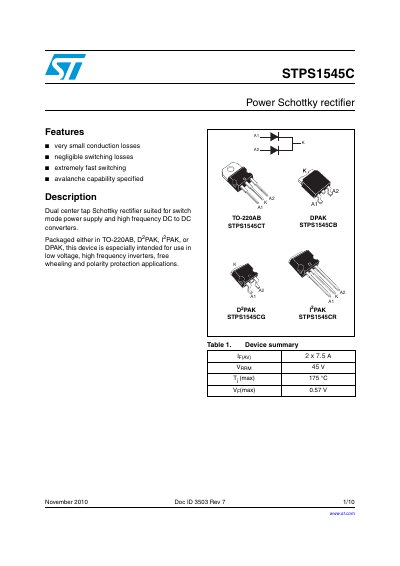

STMicroelectronics STPS1545C Power Schottky Rectifier Datasheet
This document describes the STPS1545C, a dual center tap Schottky rectifier designed for switch mode power supplies and high frequency DC to DC converters. The device is packaged in TO-220AB, DPAK, or I?PAK formats and is intended for use in low voltage, high frequency inverters, free wheeling, and polarity protection applications.
Read onlineSTMicroelectronics STPS1545 specifications
| Repetitive peak reverse voltage | 45 V |
|---|---|
| RMS forward current (TO-220AC) | 30 A |
| Average forward current (TO-220FPAC) | 15 A |
| Surge non repetitive forward current | 220 A |
| Maximum operating junction temperature | 175 °C |
| Forward voltage drop (Typical) | 0.57 V |
Source: STMicroelectronics STPS1545 Power Schottky Rectifier Datasheet
All STMicroelectronics STPS1545 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating junction temperature for this device?
The maximum operating junction temperature is 175 °C.
From: STMicroelectronics STPS1545C Power Schottky Rectifier Datasheet
How much torque should be applied when mounting the package?
The recommended torque value is between 0.4 and 0.6 N-m.
From: STMicroelectronics STPS1545C Power Schottky Rectifier Datasheet
What is the recommended torque value for the TO-220FPAC package?
The recommended torque value is 0.55 Nm.
From: STMicroelectronics STPS1545 Power Schottky Rectifier Datasheet
What is the maximum reverse voltage for the STPS1545C?
The device can withstand a repetitive peak reverse voltage of 45 V.
From: STMicroelectronics STPS1545C Schottky Rectifier Datasheet
Which package types are available for the STPS1545C?
It is offered in TO‑220AB, DPAK and I‑PAK (ECOPACK) packages.
From: STMicroelectronics STPS1545C Schottky Rectifier Datasheet
