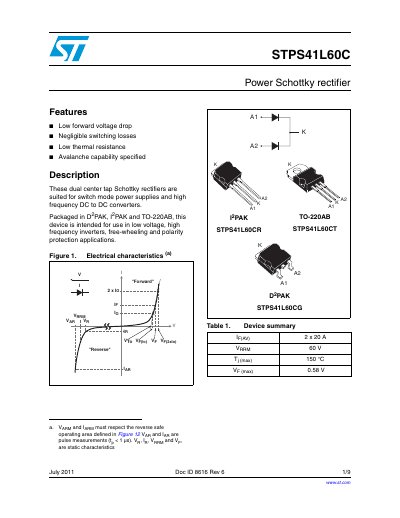

STMicroelectronics STPS41L60C Power Schottky Rectifier Datasheet
Datasheet 9 pages · 141 KB · EN
The STPS41L60C is a dual center tap Power Schottky rectifier designed for use in switch mode power supplies and high frequency DC to DC converters. It is available in D2PAK, D?PAK, and TO-220AB packages.
Read onlineSTMicroelectronics STPS41L60C specifications
| Repetitive peak reverse voltage | 60 V |
|---|---|
| Average forward current (per device) | 40 A |
| Maximum operating junction temperature | 150 °C |
Source: STMicroelectronics STPS41L60C Power Schottky Rectifier Datasheet
All STMicroelectronics STPS41L60C documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating junction temperature for the STPS41L60C?
The maximum operating junction temperature is 150 °C.
From: STMicroelectronics STPS41L60C Power Schottky Rectifier Datasheet
What is the recommended torque value for the TO-220AB package?
The recommended torque value is 0.4 to 0.6 N-m.
From: STMicroelectronics STPS41L60C Power Schottky Rectifier Datasheet
What is the maximum reverse voltage rating for the STPS41L60?
The device is rated for a repetitive peak reverse voltage of 60 V.
What is the typical forward voltage drop at 20 A and 25 °C?
The forward voltage drop is about 0.60 V under those conditions.
