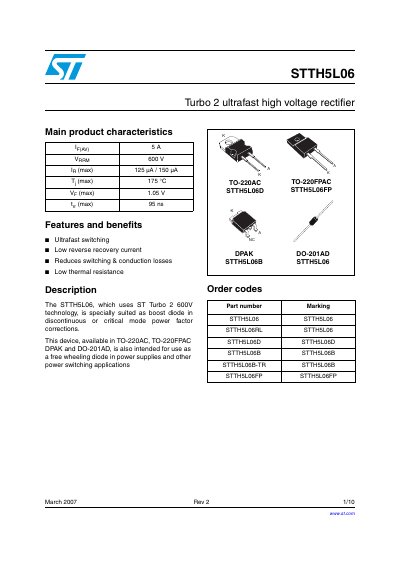

STMicroelectronics STTH5L06 Turbo 2 Ultrafast High Voltage Rectifier Datasheet
The STTH5L06 is a Turbo 2 ultrafast high voltage rectifier designed with low reverse recovery current to reduce switching and conduction losses. It utilizes ST Turbo 2 600V technology, making it particularly suited for use as a boost diode in discontinuous or critical mode power factor corrections.
Read onlineSTMicroelectronics STTH5L06 specifications
| Repetitive peak reverse voltage | 600 V |
|---|---|
| RMS forward current (TO-220AC, DPAK) | 10 A |
| RMS forward current (DO-201AD) | 5 A |
| Maximum operating junction temperature | +175 °C |
| Reverse leakage current (Typical) | 125 pA |
| Reverse recovery time (Typical at 5A) | 95 ns |
Source: STMicroelectronics STTH5L06 Turbo 2 Ultrafast High Voltage Rectifier Datasheet
All STMicroelectronics STTH5L06 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the main application for this rectifier?
It is specially suited as a boost diode in discontinuous or critical mode power factor corrections.
From: STMicroelectronics STTH5L06 Turbo 2 Ultrafast High Voltage Rectifier Datasheet
Which packages are available for the STTH5L06?
The device is available in TO-220AC, TO-220FPAC, DPAK, and DO-201AD packages.
From: STMicroelectronics STTH5L06 Turbo 2 Ultrafast High Voltage Rectifier Datasheet
What is the maximum repetitive peak reverse voltage of the STTH5L06D/B/FP?
The device can withstand a repetitive peak reverse voltage of 600 V.
What is the recommended torque for mounting the TO‑220AC package?
The recommended torque value for the TO‑220AC package is 0.55 Nm.
