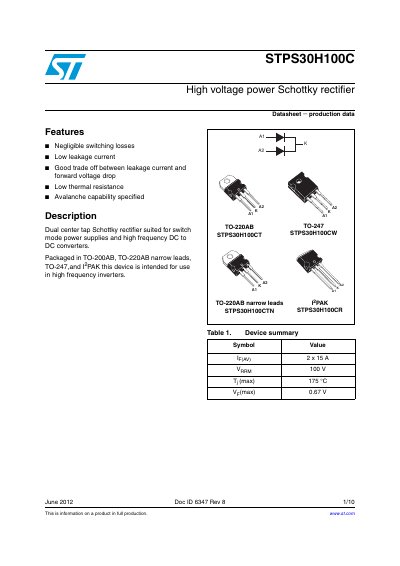

STMicroelectronics STPS30H100C High Voltage Power Schottky Rectifier Datasheet
The STPS30H100C is a dual center tap Schottky rectifier designed for use in switch mode power supplies and high frequency DC to DC converters. It is intended for application in high frequency inverters and features negligible switching losses, low leakage current, and specified avalanche capability. The device is available in TO-200AB, TO-220AB narrow leads, TO-247, and I2PAK packages.
The document details absolute ratings per diode, including a repetitive peak reverse voltage of 100 V and an average forward current of 15 A per diode (30 A per device). It also provides thermal resistance values, static electrical characteristics such as forward voltage drop, and comprehensive mechanical dimensions for all supported package types.
STMicroelectronics STPS30H100C specifications
| Repetitive peak reverse voltage | 100 V |
|---|---|
| Average forward current (per device) | 30 A |
| Forward voltage drop (Typical) | 0.67 V |
| Junction to case thermal resistance (Total) | 0.9 °C/W |
Source: STMicroelectronics STPS30H100C High Voltage Power Schottky Rectifier Datasheet
All STMicroelectronics STPS30H100C documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating junction temperature for this device?
The maximum operating junction temperature is 175 °C.
From: STMicroelectronics STPS30H100C High Voltage Power Schottky Rectifier Datasheet
What is the recommended torque value for the TO-247 package?
The recommended torque value is 0.55 N·m.
From: STMicroelectronics STPS30H100C High Voltage Power Schottky Rectifier Datasheet
What is the maximum repetitive peak reverse voltage?
The device can withstand a repetitive peak reverse voltage of 100 V.
What is the recommended torque for the TO‑247 package?
The recommended mounting torque is 0.8 N·m.
