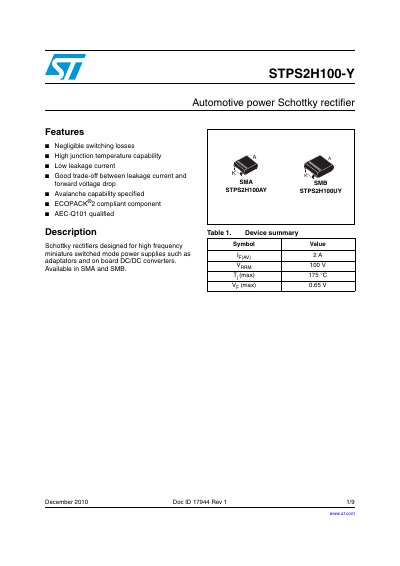

STMicroelectronics STPS2H100-Y Automotive Power Schottky Rectifier Datasheet
The document describes the STPS2H100-Y Automotive Power Schottky Rectifier, a component designed for high-frequency miniature switched mode power supplies such as adapters and on-board DC/DC converters. Key features include negligible switching losses, high junction temperature capability up to 175°C, low leakage current, and AEC-Q101 qualification.
Read onlineSTMicroelectronics STPS2H100 specifications
| Repetitive peak reverse voltage | 100 V |
|---|---|
| Surge non repetitive forward current | 75 A |
| Operating junction temperature range | -40 to +175 °C |
Source: STMicroelectronics STPS2H100-Y Automotive Power Schottky Rectifier Datasheet
All STMicroelectronics STPS2H100 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What packages are available for the STPS2H100-Y?
The device is available in SMA and SMB packages.
From: STMicroelectronics STPS2H100-Y Automotive Power Schottky Rectifier Datasheet
Is the STPS2H100-Y qualified for automotive use?
Yes, it is AEC-Q101 qualified.
From: STMicroelectronics STPS2H100-Y Automotive Power Schottky Rectifier Datasheet
What is the maximum operating junction temperature for the STPS2H100?
The maximum operating junction temperature is 175 °C.
From: STMicroelectronics STPS2H100 Power Schottky Rectifier Datasheet
What is the maximum forward voltage drop at a junction temperature of 125 °C?
The maximum forward voltage drop is 0.74 V at a junction temperature of 125 °C.
From: STMicroelectronics STPS2H100 Power Schottky Rectifier Datasheet
