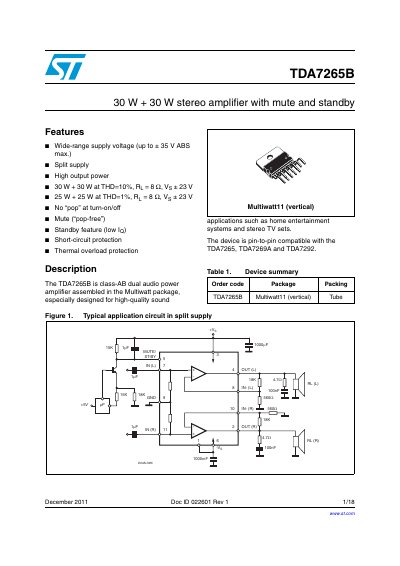

STMicroelectronics TDA7265B 30W+30W Stereo Amplifier Datasheet
The TDA7265B is a class-AB dual audio power amplifier designed for high-quality sound reproduction in home entertainment systems and stereo TV sets. It is assembled in a Multiwatt 11 (vertical) package and is pin-to-pin compatible with the TDA7265, TDA7269A, and TDA7292.
Read onlineSTMicroelectronics TDA7265 specifications
| Supply voltage range | +8 to +33 V |
|---|---|
| Crosstalk | 70 dB |
| Operating temperature | -20 to 85 °C |
Source: STMicroelectronics TDA7265B 30W+30W Stereo Amplifier Datasheet
All STMicroelectronics TDA7265 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage?
The maximum DC supply voltage is +35 V.
From: STMicroelectronics TDA7265B 30W+30W Stereo Amplifier Datasheet
What is the quiescent current?
The total quiescent current is typically between 50 mA and 130 mA.
From: STMicroelectronics TDA7265B 30W+30W Stereo Amplifier Datasheet
What is the maximum supply voltage?
The absolute maximum DC supply voltage is +25V.
How does the Stand-By function work?
When Pin 5 voltage is higher than +Vs - 2.5V, the amplifier enters Stand-by mode.
