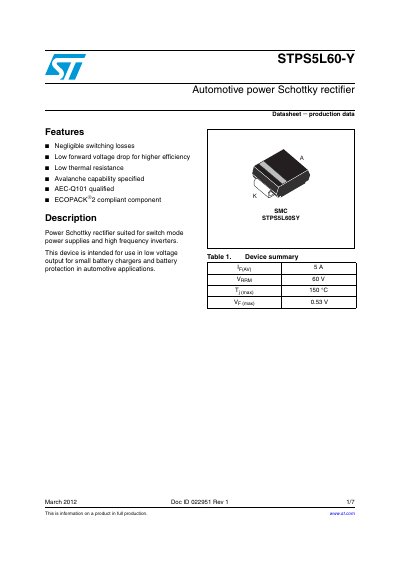

STMicroelectronics STPS5L60-Y Automotive Power Schottky Rectifier Datasheet
This document is a datasheet for the STPS5L60-Y Automotive Power Schottky Rectifier, a device designed for use in switch mode power supplies and high frequency inverters. It is specifically intended for low voltage output applications such as small battery chargers and battery protection in automotive environments. The component is AEC-Q101 qualified and ECOPACK®2 compliant.
Read onlineSTMicroelectronics STPS5L60 specifications
| Average Forward Current (IF(AV)) | 5 A |
|---|---|
| Repetitive Peak Reverse Voltage (VRRM) | 60 V |
| Maximum Junction Temperature (Tj) | 150 °C |
| Maximum Forward Voltage Drop (VF) | 0.53 V |
| Forward RMS Current (IF(RMS)) | 15 A |
| Junction to Leads Thermal Resistance (Rth(j-l)) | 15 °C/W |
| Storage Temperature Range (Tstg) | -65 to +175 °C |
Source: STMicroelectronics STPS5L60-Y Automotive Power Schottky Rectifier Datasheet
All STMicroelectronics STPS5L60 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the intended application for the STPS5L60-Y?
The device is intended for use in low voltage output for small battery chargers and battery protection in automotive applications.
From: STMicroelectronics STPS5L60-Y Automotive Power Schottky Rectifier Datasheet
Is the STPS5L60-Y qualified for automotive use?
Yes, the component is AEC-Q101 qualified.
From: STMicroelectronics STPS5L60-Y Automotive Power Schottky Rectifier Datasheet
What are the intended applications for the STPS5L60?
The device is intended for use in low voltage output for small battery chargers and consumer SMPS such as DVD and set-top-box.
From: STMicroelectronics STPS5L60 Power Schottky Rectifier Datasheet
What is the maximum operating junction temperature?
The maximum operating junction temperature is 150 °C.
From: STMicroelectronics STPS5L60 Power Schottky Rectifier Datasheet
