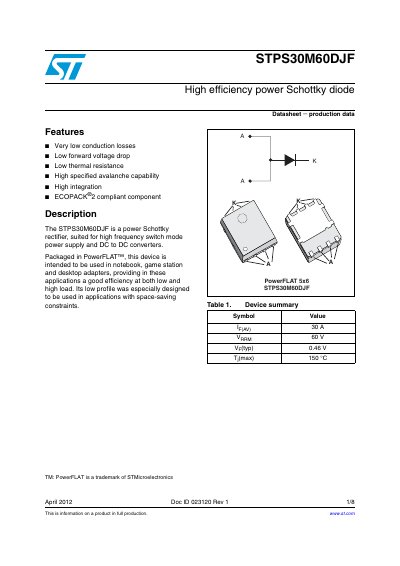

STMicroelectronics STPS30M60DJF Power Schottky Diode Datasheet
This document is a production datasheet for the STPS30M60DJF, a power Schottky rectifier designed for high frequency switch mode power supplies and DC to DC converters. The device is packaged in PowerFLAT™ and is intended for use in adapters for notebooks, game stations, and desktops, offering good efficiency at both low and high loads.
Read onlineSTMicroelectronics STPS30M60 specifications
| Average forward current (IF(AV)) | 30 A |
|---|---|
| Repetitive peak reverse voltage (VRRM) | 60 V |
| Forward rms current (IF(RMS)) | 90 A |
| Junction to case thermal resistance (Rth(j-c)) | 0.9 °C/W |
Source: STMicroelectronics STPS30M60S Power Schottky Rectifier Datasheet
All STMicroelectronics STPS30M60 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What applications is the STPS30M60DJF diode intended for?
This device is suited for high frequency switch mode power supply and DC to DC converters, specifically in notebook, game station, and desktop adapters.
From: STMicroelectronics STPS30M60DJF Power Schottky Diode Datasheet
What is the maximum operating junction temperature?
The maximum operating junction temperature is 150 °C.
From: STMicroelectronics STPS30M60DJF Power Schottky Diode Datasheet
What is the recommended torque value for the TO-220AB package?
The recommended torque value is 0.4 to 0.6 N·m.
From: STMicroelectronics STPS30M60S Power Schottky Rectifier Datasheet
What is the weight of the STPS30M60SR in the I2PAK package?
The weight of the STPS30M60SR in the I2PAK package is 1.49 g.
From: STMicroelectronics STPS30M60S Power Schottky Rectifier Datasheet
What is the maximum operating junction temperature for the STPS30M60?
The maximum operating junction temperature is 150 °C.
From: STMicroelectronics STPS30M60 Power Schottky Rectifier Datasheet
What is the recommended torque value when mounting the device?
The recommended torque value is 0.4 to 0.6 N-m.
From: STMicroelectronics STPS30M60 Power Schottky Rectifier Datasheet
