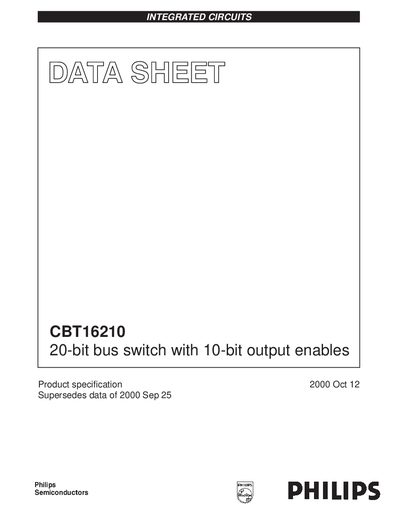

The CBT16210 is a 20-bit bus switch with 10-bit output enables. It provides low on-state resistance for minimal propagation delay. The device has two 10-bit bus switches and separate output-enable inputs, which can be used as two 10-bit bus switches or one 20-bit bus switch.
The CBT16210 provides high‑speed TTL‑compatible bus switching. It can be configured as two independent 10‑bit switches or as a single 20‑bit switch, with separate output‑enable inputs that control the connection between ports A and B.
Key specifications include operation from –40 °C to +85 °C, a supply voltage range of –0.5 V to +7.0 V, propagation delay of about 250 ps, and package options in 48‑pin SSOP and TSSOP formats. The device features ESD protection (CDM 1000 V, HBM 2000 V) and low on‑state resistance for minimal propagation delay.
| Number of switch connections | 50 |
|---|---|
| Package options | 48‑pin SSOP and 48‑pin TSSOP |
| Operating temperature range | ‑40 °C to +85 °C |
| Supply voltage range | ‑0.5 V to +7.0 V |
| Propagation delay (typical) | 250 ps |
| Output enable time to HIGH level (typical) | 1.5 ns |
The DC supply voltage rating is –0.5 V to +7.0 V.
It provides 20 bits of bus switching, organized as two 10‑bit switches.
The device is offered in 48‑pin plastic SSOP and 48‑pin plastic TSSOP packages.
The device is rated for –40 °C to +85 °C.
