BT134W-500E/600E is a Philips Semiconductors product, a high-sensitivity bidirectional thyristor, mainly used for general-purpose bidirectional switching and phase-control applications that require high sensitivity in all four quadrants

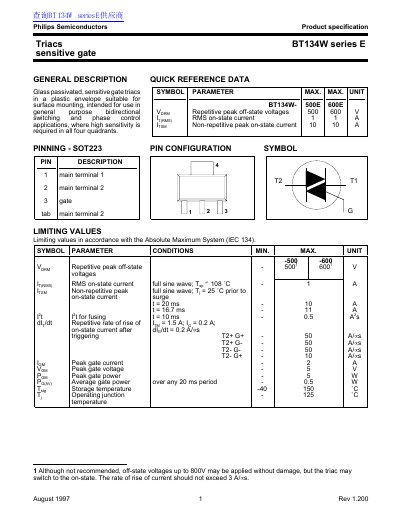

This document is a product specification datasheet for the Philips BT134W series E triacs. These are glass passivated, sensitive gate devices intended for surface mounting in plastic envelopes suitable for general purpose bidirectional switching and phase control applications.
The datasheet provides comprehensive reference data including limiting values, static characteristics (gate trigger current/voltage, latching/holding currents), dynamic characteristics (turn-on time, critical rate of rise of off-state voltage), and thermal resistances. It also includes mounting instructions for the SOT223 package and mechanical dimensions.
| Repetitive peak off-state voltages | 500 / 600 V |
|---|---|
| RMS on-state current | 1 A |
| Non-repetitive peak on-state current | 10 A |
| Package type | SOT223 |
The device can be stored between -40 °C and 150 °C.
The printed circuit board used for thermal resistance measurements must be 1.6 mm thick.
