This is a datasheet for the BT134W series of thyristors produced by Philips Semiconductors

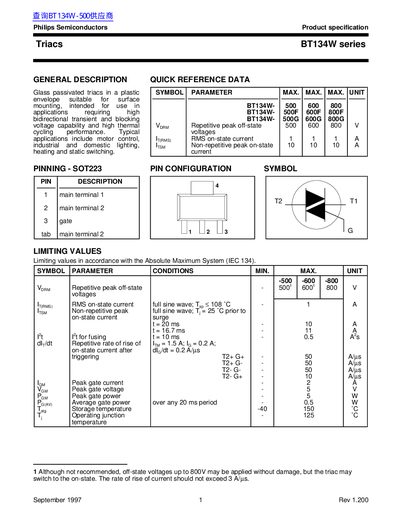

This document is a product specification for the Philips BT134W series of triacs. It describes glass passivated triacs in a plastic envelope suitable for surface mounting, intended for applications requiring high bidirectional transient and blocking voltage capability. Typical applications include motor control, industrial and domestic lighting, heating, and static switching.
| Package Type | SOT223 |
|---|---|
| Maximum IT(RMS) | 1 A |
| Maximum Operating Junction Temperature | 125 °C |
| Maximum Storage Temperature | 150 °C |
| Maximum Gate Trigger Current (T2+ G+) | 50 mA |
The triacs are in a plastic envelope suitable for surface mounting, specifically the SOT223 package.
The maximum RMS on-state current is 1 A for all models in the BT134W series.
