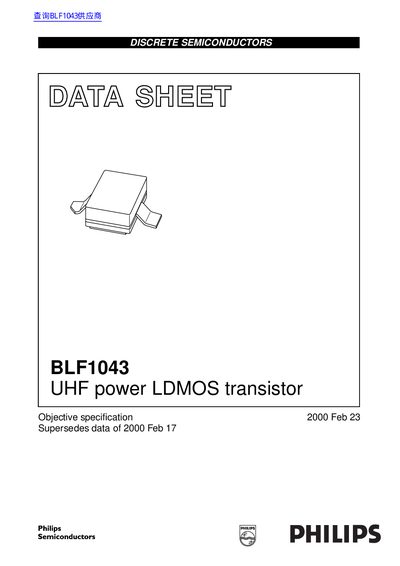

Philips BLF1043 UHF Power LDMOS Transistor Datasheet
The document is a datasheet for the Philips BLF1043, a UHF power LDMOS transistor designed for communication transmitter applications in the UHF frequency range. It features a silicon N-channel enhancement mode lateral D-MOS structure encapsulated in a 2-lead flangeless ceramic package (SOT538A). The device is optimized for broadband operation from HF to 1 GHz and is designed to reduce common mode inductance by connecting the common source to the mounting base.
The datasheet details the transistor's RF performance in a common source class-AB circuit, providing typical values for power gain and efficiency across the frequency spectrum. It also includes limiting values for absolute maximum ratings, thermal characteristics, and specific electrical parameters such as breakdown voltage, leakage current, and capacitance. Additionally, the document outlines the mechanical dimensions of the SOT538A package and defines the status of the specification as an 'Objective specification' from February 2000.
Philips BLF1043 specifications
| Storage temperature range | -65 to +150 °C |
|---|---|
| Maximum junction temperature | 200 °C |
| Typical two-tone output power (PEP) | 10 W |
| Typical two-tone power gain | 18.5 dB |
| Typical two-tone efficiency | 40% |
| Typical two-tone IMD | -31 dBc |
| Package type | SOT538A SMD |
| Ruggedness (VSWR) | 10:1 |
| Operating frequency range | HF to 1000 MHz |
| Supply voltage (typical) | 26 V |
Source: Philips BLF1043 UHF Power LDMOS Transistor Product Specification
All Philips BLF1043 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating frequency range of the BLF1043?
The transistor is designed for broadband operation from HF to 1 GHz.
What is the maximum drain-source voltage for this transistor?
The maximum drain-source voltage rating is 75 V.
What package does the BLF1043 use?
The BLF1043 uses an SOT538A SMD package.
From: Philips BLF1043 UHF Power LDMOS Transistor Product Specification
What is the typical two-tone performance at 960 MHz?
At 26 V supply and 85 mA quiescent current, the typical two-tone output power is 10 W PEP with 18.5 dB gain, 40% efficiency, and intermodulation distortion below 31 dBc.
