Start here

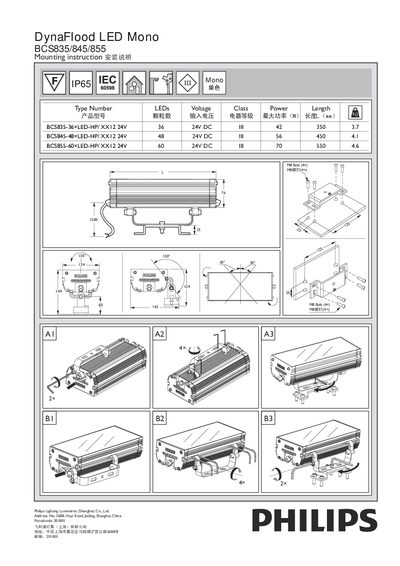

Philips BCS835/845/855 Installation Manual
Installation Guide 2 pages · 1 MB · EN
This manual provides the mounting and wiring instructions for the Philips DynaFlood LED Mono series (models BCS835, BCS845, BCS855). It lists the LED count, voltage class, power rating and physical dimensions for each model and identifies the required power‑supply adaptor.
The document specifies that the power‑supply unit must be ordered separately, details the cable types and maximum cabling distance, and includes CE compliance notes. It also states that the external flexible cable cannot be replaced; if damaged, the luminaire must be discarded.
Philips BCS855 specifications
| LED count (BCS835) | 36 |
|---|---|
| LED count (BCS845) | 48 |
| LED count (BCS855) | 60 |
All Philips BCS855 documents by type
Installation Guide 2
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
Is a power‑supply unit included with the luminaire?
No. The power‑supply unit must be ordered separately and used with the specified adaptor model.
